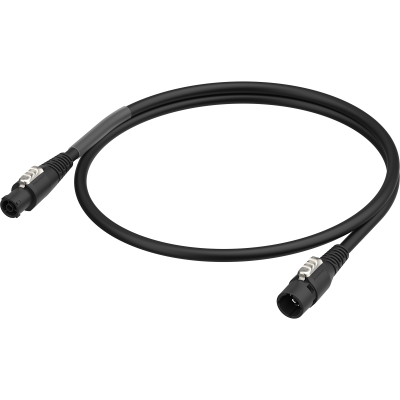

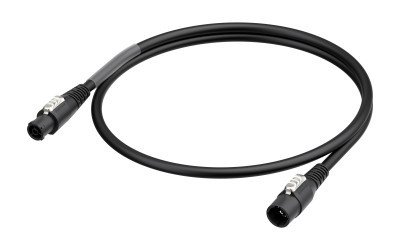

powerCON_cable-NAC3FXW-NAC3MXW_persp front_RGB_WEB
neutrik-uk / Products / powerCON TRUE1 - Interconnection cordset (NKPF-M*)

powerCON TRUE1 - Interconnection cordset (NKPF-M*)

Download Data Sheet

Ready-made overmolded power cord in protection class IP65. The cable utilizes standard duty cord with 3 conductors with cross section 1.5 mm2 or AWG 12.

The cables are equipped with Neutrik powerCON TRUE1 NAC3FX-W and NAC3MX-W. Cables are available in different lengths.

Downloads
NKPF-M
pdf - 872.37 KB
nkpf-m-
dxf - 2.38 MB
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB
Links
UL Certificate (ELBZ2.E343814) cUL Certificate (ELBZ8.E343814)

Distributor stock search

Enter part number and search Neutrik UK distributor's stock.

Partnumber Breakdown

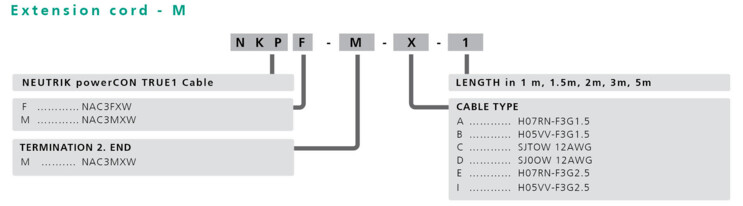

powerCON TRUE1 Part Number Breakdown Extension Cord
powerCON TRUE1

The powerCON TRUE1 is a locking waterproof 16 A (USA: 20 A) true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

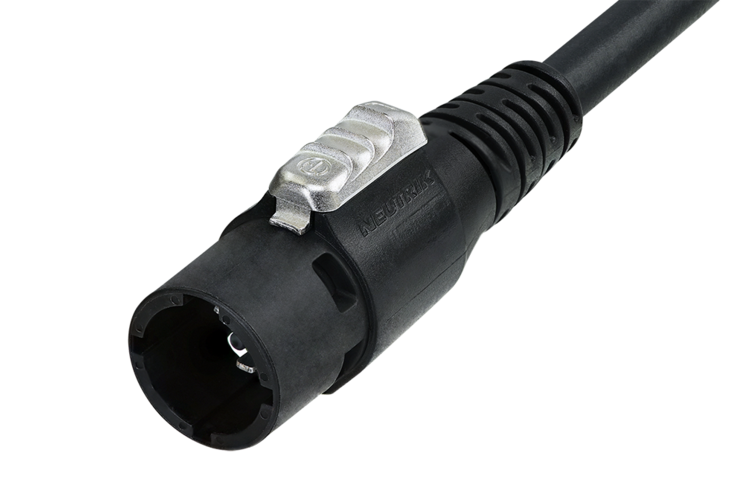

powerCON TRUE1 Power Cable male

powerCON TRUE1 Power Cable male

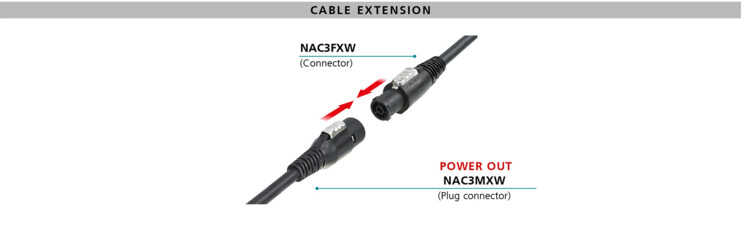

Mating scenario powerCON TRUE 1 cable extension

Mating scenario powerCON TRUE 1 cable extension

powerCON TRUE1 Extension Cord

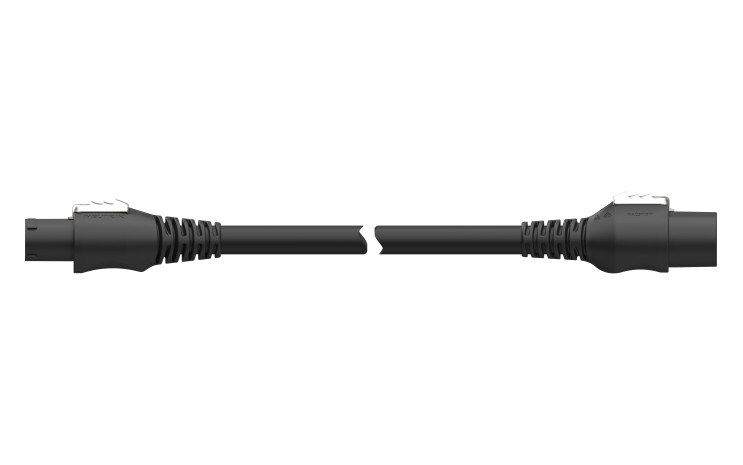

powerCON_NAC3FXW-NAC3MXW-cable cut_montage side_RGB_WEB
