opticalCON SPLIT

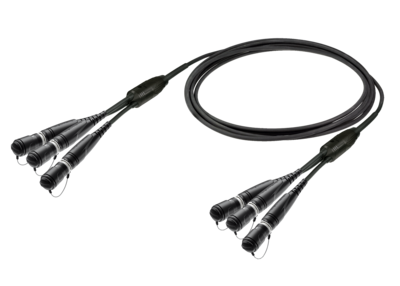

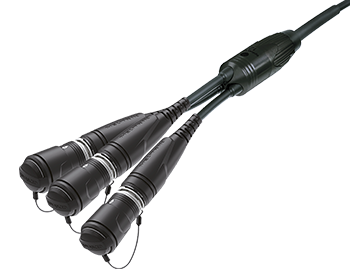

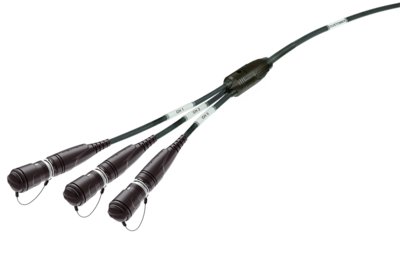

Multichannel (up to 12 channel) cable solution based on opticalCON DUO, QUAD or MTP^®. Excellent cable retention due to aramid yarn, black PUR outer jacket.

The opticalCON cable connector accommodates PC optical channels based on conventional and proven LC or MTP^® connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.

The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.

Optical Con Login

To login Optical Con Login

Features & Benefits

opticalCON multichannel solution based on the opticalCON DUO, QUAD or MTP^®
maximum flexibility combining 2-, 4- and 12-channel cables
opticalCON multi mode fiber cables offer laser and bend optimized OM3 fibers
1 m SPLIT: mechanically damaged connectors can be reassembled with a slightly shortened cable split
Color coding for channel identification
Rugged fiber optic connection system
For Point-to-Point multichannel routing
Innovative spherical shutter guarantees low maintenance
Dust and water resistant according to IP65 in mated condition

Downloads

produkt-katalog---kapitel-datenstecker

pdf - 7.81 MB

BDA 522 V2 - opticalCON QUAD Handling Instruction

pdf - 3.55 MB

opticalcon-quad-technical-paper-v1

pdf - 1.52 MB

NDS11 - opticalCON MTP 12® X-TREME

pdf - 229.93 KB

opticalcon-broadcast-application-ob-truck

pdf - 422.34 KB

NDS10 - opticalCON MTP 12® & SPLIT ADVANCED

pdf - 230.55 KB

opticalcon-availability

pdf - 586.23 KB

reference-projects---opticalcon

pdf - 4.96 MB

NEUTRIK opticalCON Guide – NF05 V30 – 202410

pdf - 43.46 MB

Technical Information

Product
Title	opticalCON SPLIT

Mechanical
Cable retention	500 N
Insertion force	< 45 N
Withdrawal force	< 45 N
Lifetime (typ.)	2500 mating cycles
Wiresize
Locking device	Push-Pull

Material
Boot	Rubber (EPDM)
Bushing	Zinc diecast (ZnAl4Cu1)
Insert	Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Black chromium
Strain relief	Brass (CuZn39Pb3) + PU, Ni

Environmental
Temperature range	-40 °C to +70 °C
Protection class	in mated condition IP65

Optical
Insertion loss	< 0.9 dB

Mobile cable
Colour	black, matte
Core diameter	Singlemode 9 µm, Multimode 50 µm OM3 µm
Cladding diameter	125 µm
minimal bending radius	10.9 cm
Number of fibers	12
Cable retention	Aramid yarn
Weigth	103 kg/km
Cable diameter	10.9 mm
