neutrik-uk > Products > opticalCON QUAD X-TREME
Cable-Connector-Assembly-QUAD

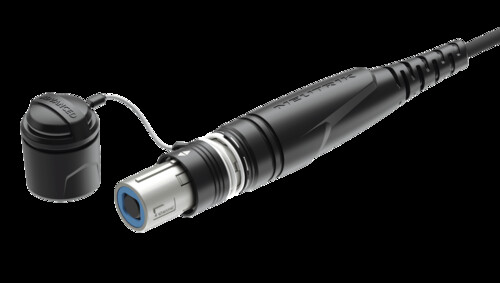

opticalCON QUAD X-TREME

Assembled, 4-channel X-TREME cable offering a cut-proof and rodent resistant double jacket glass yarn armored cable construction. Excellent cable retention due to aramid yarn, black PUR outer jacket.

The opticalCON QUAD cable connector accommodates four PC optical channels based on conventional and proven LC connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.

The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Distributor Stock Search Technical Information Accessories
Download Data Sheet

Features & Benefits

  • opticalCON X-TREME cable for demanding applications like touring / rental or outdoor broadcast
  • opticalCON multi mode fiber cables offer laser and bend optimized OM3 fibers
  • Offers a cut-proof and rodent-resistant double-jacket, glass-yarn armored cable construction
  • Rugged 4-channel fiber optic connection system
  • For Point-to-Point multichannel routing
  • Innovative spherical shutter guarantees low maintenance
  • Dust and water resistant according to IP65 in mated condition



Downloads

  • Drawing NKO4-A
  • Drawing NKO4-A
  • opticalCON Audio, Video, Lighting Application
  • opticalCON Broadcast Application OB Truck
  • Cable datasheet - opticalCON QUAD XTREME
  • Handling Instruction - opticalCON QUAD
  • opticalCON QUAD Technical Paper
  • opticalCON Availability
  • Reference Projects - opticalCON
  • Product Folder opticalCON

Cable cross section

opticalCON QUAD X-TREME - cable cross section

Packaging options and max. cable length

opticalCON-DRUM-Packagin---013456

Cleaning

opticalCON QUAD logo

opticalCON QUAD logo

opticalCON Features

opticalCON Features

Distributor stock search

Enter part number and search Neutrik UK distributor's stock.

Technical Information

Product
Title opticalCON QUAD X-TREME
Gender male
Mechanical
Cable retention 500 N
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime > 5000 mating cycles
Wiresize
Locking device Push-Pull
Material
Boot Rubber (EPDM)
Bushing Zinc diecast (ZnAl4Cu1)
Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Polyacetal (POM) (brass)
Environmental
Temperature range -40 °C to +75 °C
Optical
Fiber type
Multimode PC
Singlemode PC
Insertion loss < 0.45 dB / connection
Optical wiring ISO / IEC 11801
Mobile cable
Colour black, matte
Core diameter single mode 9 µm, multi mode 50 µm
Cladding diameter 125 µm
Comment PUR
minimal bending radius 9.2 cm
Number of fibers 4
Cable retention Aramid yarn
Weigth 82 kg/km
Overal diameter 9.2 mm
Outer shield coated glass yarn

Accessories

CAS-FOCD-ADV
CAS-FOCD-ADV
NAO4MW
NAO4*W-A
NOR
NOR-*
SCNOX-A
SCNO*X-A
opticalCON DUO, QUAD und MTP
FOPS-SINGLE
opticalCON Split
FOPS-SPLIT
FOCD-STQ
