NPPA-TT-PT
neutrik-uk / Products / NPPA-TT-PT-I

NPPA-TT-PT-I

Download Data Sheet

2 x 48 TT (Bantam) jacks, normalling isolated, 288 push terminals, individual grounding

All NPPA patch panels are fitted with high quality, long life NJ3TTA gold plated double contact jacks (2x48), featuring best contact integrity. The unit, robustly housed in a black coated steel shell, is finished off with a built in cable bar and two large channel identification strips for perfect management of the system. The NPPA patch panels are an innovative and compact patching system (just 1U high) for 19" rack mounting.

Features & Benefits
  • Innovative and compact patching system (just 1U high) for 19" rack mounting
  • Robustly housed in a black coated steel shell
  • High quality long life gold plated Neutrik prewired double jacks with best contact integrity
  • Qualified for analog and digital signals acc. AES3, 48 kHz sampling frequency
  • Mixed normalling configuration can be done by jack pairs (see accessories)
  • Flexible grounding system (see Assembly Instruction)



Downloads
nppa-tt-pt-5
pdf - 89.38 KB
nppa-tt-pt-2
dxf - 20.23 KB
patch-panel-nppa-tt-pt
pdf - 1.38 MB
07 Section Accessories and Patch Panels PG DE 202202-V22
pdf - 7.27 MB
PatchLabel
zip - 668.22 KB

Technical Information

Product
Title NPPA-TT-PT-I
Connection Type Patch Panel
Electrical
Signal Type Digital suitability acc. AES/EBU (3.072 Mb/s and 6.144 Mb/s)
Contact resistance 20 mΩ
Contact resistance < 25 mΩ
Dielectric strength 1 kVdc
Frequencyrange DC to > 50 MHz
Insulation resistance > 1 GΩ
Channel separation > 100 dB @ 10 kHz, 600 terminated
> 40 dB @ 6 MHz, 110 terminated
Mechanical
Insertion force < 10 N
Withdrawal force > 8 N
Lifetime > 5000 mating cycles
Wiresize
Locking device Retention spring
Material
Contact plating TRIBOR® (0.2 µm AuCo over 2 µm NiP) (Jacks)
Contacts Bronze (CuSn6) (Jacks)
Shell PA 66 blend (Jacks)
Shell plating Black
Front panel AlMgSi0.5 F22
Environmental
Temperature range -30 °C to +80 °C
Accessories
audio
NJ3TTA-4-FN

*** DISCONTINUED *** Blocks of 2 pre-configured jack-pairs, full normalled, cover ident color: green

audio

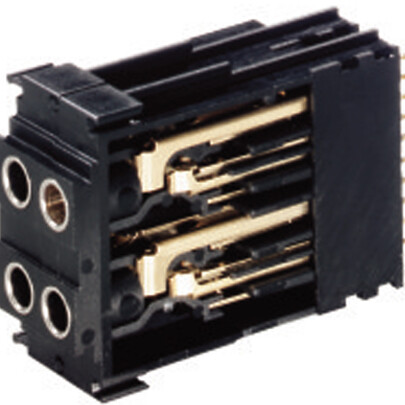

NJ3TTA-4-HNB

audio
NJ3TTA-4-HNT

Blocks of 2 pre-configured jack-pairs, half normalled top row, cover ident color: yellow

audio
NJ3TTA-4-I

Blocks of 2 pre-configured jack-pairs, isolated, cover ident color: orange

audio
NJ3TTA-4-P

*** DISCONTINUED *** Blocks of 2 pre-configured jack-pairs, parallel, cover ident color: red

audio

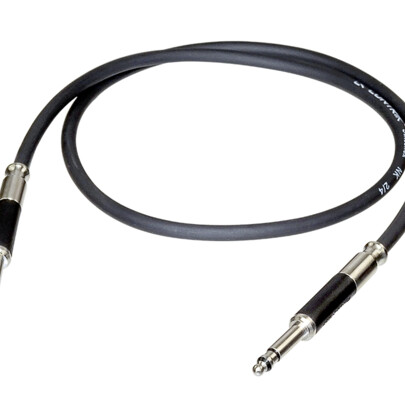

NKTT*

*** DISCONTINUED *** Patch cable with NP3TT-1 plugs

audio

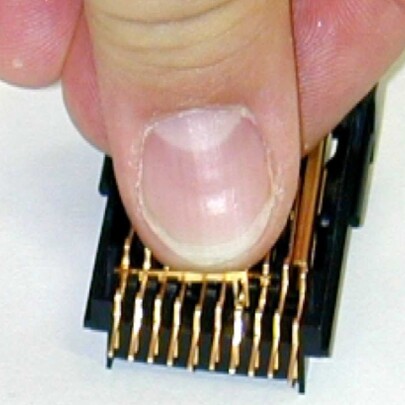

NPPA-NB

NPPA-TT normalling bar emergency kit

audio
NPPA-S

Strain relief bar
