NLJ2MDXX-V - speakON
neutrik-uk / Products / speakON® Loudspeaker Connectors / speakON® Chassis Connectors / speakON® Combo / NLJ2MDXX-H

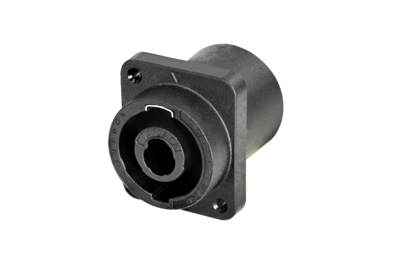

NLJ2MDXX-H

Download Data Sheet



2 pole combination of speakON socket and 1/4" jack receptacle, horizontal PCB mount, same PCB footprint and panel cut out as NL4MD-H

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

speakON / jack hybrid panel mount connector combining the speakON chassis connector with a 1/4" 2 pole jack socket permitting connection using either type of plug. The speakON Combo mates with all 2- and 4-pole speakON cable connectors and 1/4" jack plugs utilizing 2 contacts.

Features & Benefits
  • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
  • Glass reinforced V-0 materials – extremely robust and durable
  • Versatile, space- and cost-saving – combined speakON D size receptacle and 1/4" jack
  • PA-wiring: 1+ is connected to Tip, 1- to Sleeve
  • Rear panel mount
Downloads
3D_NLJ2MDXX-H
pdf - 1 MB
3D_NLJ2MDXX-H
stp - 2.93 MB
20003602_-_NLJ2MDXX-H
dxf - 1.52 MB
NLJ2MDXX-H
pdf - 346.18 KB
Certificate_CB_SE-106538
pdf - 94.63 KB

Technical Information

Product
Title NLJ2MDXX-H
Gender male
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength speakON 2.5 kV ac
Insulation resistance > 1 GΩ (after dampheat)
Rated current per contact speakON 15 A rms continuous (acc. to IEC 61984)
Dielectric strength 1/4' Jack 250 V ac
Rated current per contact 1/4' Jack 1.5 kV dc
Rated voltage 1/4' Jack 50 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime > 5000 mating cycles
Termination Horizontal PCB mount
Locking device Quick Lock
Mounting direction Rear mounting
Layout standard hole position, self tapping screw holes (A-Screw)
Material
Contact plating Ag
Contacts Copper Alloy
Shell Polyamide (PA 6.6)
Environmental
Temperature range (LLT – ULT) -30 °C to +80 °C
Pollution degree according to IEC 60664-1 2
Protection class according to IEC 60529 IP 20
Flammability according to UL 94 V-0
Solderability Complies with IEC 60068-2-20
Accessories
audio
A-SCREW-1-8

Black self tapping PLASTITE® screw 2.9 x 1.05 tri-rondular configuration, 8 mm long, panhead

CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

audio
NDL

The dummyPLUG NDL for all 4 pole Neutrik speakON and powerCON chassis enables you to simplify cabling.

audio
SCDX

Hinged cover

audio
SCL

Dust protection cover for most speakON and powerCON chassis connectors

SCCD-W

Spring-loaded sealing cover
