NC3FD-LX-HA

3 pole female receptacle, crimp termination (Standard B-Crimp), Nickel housing, silver contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.

Features & Benefits

All metal housing offers best overall RF protection and electromagnetic shielding
Crimp termination with standard B-crimp tool (B-crimp acc. IEC 60352-2)
Gastight and Solderless connection (RoHS compliant)
New duplex ground contact for excellent contact integrity between chassis and cable connector

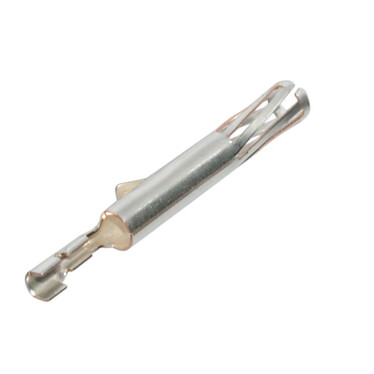

Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
Optional connection to easily join pin1 to chassis ground
D-style housing provides installation compatibility with industry standard D mounting dimensions

Downloads

crimp-xlr-chassis-connectors

pdf - 1.57 MB

01 NEUTRIK Section XLR Connectors PG EN 202202-V23_opt

Links

UL Certificate (ECBT2.E135070)

Technical Information

Product
Title	NC3FD-LX-HA
Connection Type	XLR
Gender	female

Electrical
Capacitance between contacts	≤ 4 pF
Contact resistance	≤ 5 mΩ
Dielectric strength	1,5 kVdc
Insulation resistance	> 10 GΩ (initial)
Rated current per contact	1 A
Rated voltage	< 50 V

Mechanical
Insertion force	≤ 20 N
Withdrawal force	≤ 20 N
Lifetime	> 1000 mating cycles
Wiresize	0.22 - 0.34 mm²
Wiresize	24 - 22 AWG
Wiring	Crimp contacts
Locking device	Latch lock
Chassis shape	D

Material
Contact plating	1 µm Ag
Contacts	Bronze (CuSn6)
Insert	PA66
Locking element	Steel Ck67
Locking element plating	Nickel
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Nickel
