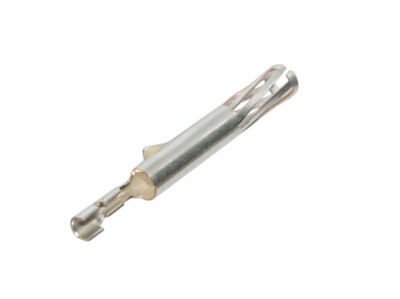

HA-3FXX
Replacement crimp contact for the NC3FXX-HA cable connector and the NC3FD-LX-HA receptacle
BULK packaging
Technical Information
| Product | |
|---|---|
| Title | HA-3FXX |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | ≤ 5 mΩ |
| Rated current per contact | 1 A |
| Mechanical | |
|---|---|
| Crimp size | B-crimp acc. IEC 60352-2 |
| Wiresize | 0.22 - 0.34 mm² |
| Wiresize | 24 - 22 AWG |
| Wiring | Crimp contacts |
| Material | |
|---|---|
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Bronze (CuSn6) |
| Environmental | |
|---|---|
| Standard compliance | IEC 61076-2-103 |
