NC3FBAH1-0

NC3FBAH1-0

Download Data Sheet

*** DISCONTINUED ***

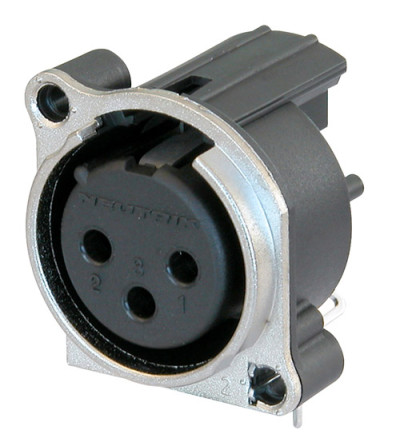

3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, horizontal PCB mount, retention spring instead of latch

The BA Series is the more economical version of the B Series with circumferential metal flange featuring EMC and RF shielding and mechanical robustness.

Features & Benefits
  • More economical version of B Series, same size and featuring highest packing density
  • Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
  • Fork type female contact
Downloads
01 NEUTRIK Section XLR Connectors PG EN 202202-V23_opt
pdf - 3.6 MB
nc3fbah1-0-1
dxf - 545.78 KB
nc3fbah1-0-2
pdf - 74.79 KB
Accessories
audio
A-SCREW-1-8

Black self tapping PLASTITE® screw 2.9 x 1.05 tri-rondular configuration, 8 mm long, panhead
audio
ACRF-*

Color coding rings for female receptacles

CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs
audio
NDF

dummyPLUG for Neutrik female XLR receptacles
audio
SCF

Dust protection cover for female chassis connectors
