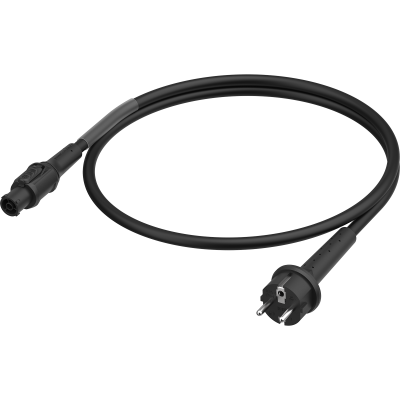

powerCON_cable-NAC3FT1-Schuko2_persp front_RGB_WEB VORSCHAUBILD - COMPLIANCE
powerCON_cable-NAC3FT1-Schuko2_persp front_RGB_WEB
VORSCHAUBILD - COMPLIANCE
1/2
neutrik-uk / Products / powerCORDS / ultimate POWER CORDS / ultimate powerCON TRUE1 cord set

ultimate powerCON TRUE1 cord set

Download Data Sheet

NEUTRIK ultimate cord sets boasts molded male and female powerCON TRUE1 connectors. These powerCON TRUE1 connectors are certified according EN IEC 60320-1.

All ultimate cord sets are manufactured in Europe, VDE tested and certified according EN IEC 60799.

Features & benefits
  • Interconnection cord set VDE certified acc. EN IEC 60799
  • powerCON TRUE1 connectors certified according EN IEC 60320-1
  • Breaking capacity
  • Superior antikink protection, ultra robust design
  • High quality TITNAEX® cables with 1,5mm2 and 2,5mm2 conductor cross section
  • TOP TRUE OUTDOOR PROTECTION: IP65 / UV resistant / corrosion resistant
  • Made in EUROPE
Downloads
23-135_NEUTRIK power cords ultimate series Broschure_11-2023_TXT
pdf - 7.09 MB
VDE Certificate 40057790 (2024-03-08)
pdf - 327.44 KB
Certificate ENEC 40057741 (2025-01-25)
pdf - 304.47 KB
Certificate ENEC 40057733 (2025-01-23)
pdf - 310.73 KB
Article Variations
Article nameDetailsOrder code
NKPH03-MFM1-M03003 m / H07RN-F3G1.5 TITANEX® 1,5 mm2 / Molded Schuko “E+F” (m) Molded powerCON TRUE1 (f)1028915
NKPH04-MFM1-M03003 m / H07RN-F3G2.5 TITANEX® 2,5 mm2 / Molded Schuko “E+F” (m) Molded powerCON TRUE1 (f1028916

ULTIMATE CORD SET - RUBBER CABLE (NKPH03/04-MFM1)

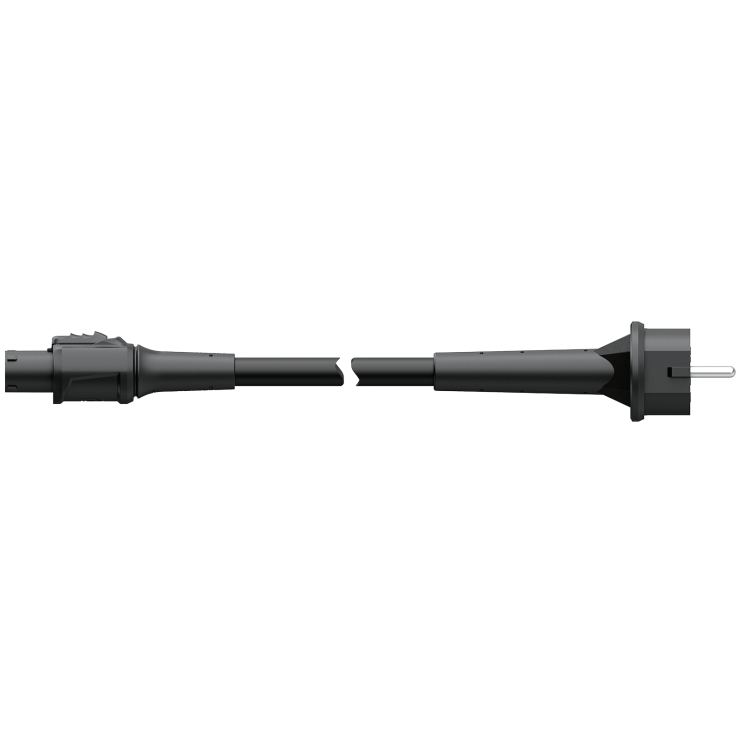

powerCON_NAC3FT1-Schuko2-cable cut_montage side
