1/5
SCF-TRUE1-01

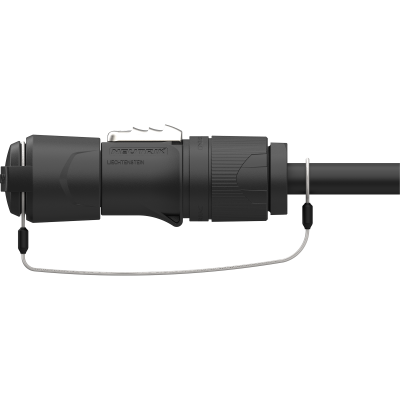

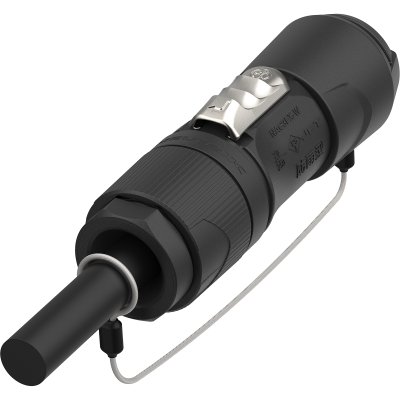

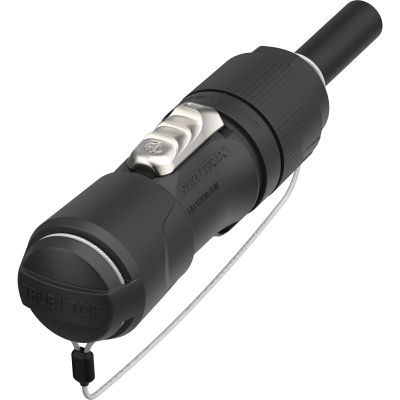

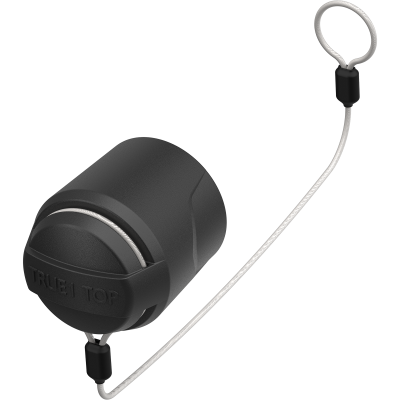

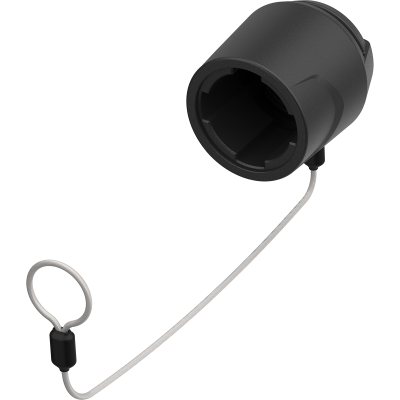

Ruggedized sealing cover (female) with ergonomic design for powerCON TRUE1 TOP cable connectors.
With its twist-lock mechanism, this product guarantees a secure interlock with the corresponding cable connector. It not only protects against particulate pollution but also offers effective protection against water ingress. Another advantage of this product is the stepless locking mechanism, which allows easy mounting on assembled cables and ensures effortless fixation.
This product, with UV-resistant material, meets all TOP product requirements and is suitable for harsh environments.
Features & Benefits
- Ruggedized construction with steel cable
- Twist lock mechanism
- Stepless locking mechanism
- Mountable onto already assembled cables
- Protection class: IP65 / IP67
- UV-resistant material for use in harsh outdoor environments
Downloads
Technical Information
| Product | |
|---|---|
| Title | SCF-TRUE1-01 |
| Gender | female |
| Material | |
|---|---|
| Material | TPU (soft component), PA66 (hard component) |
| Color | black |
| Environmental | |
|---|---|
| Flammability acc. to UL94 | HB |
| Protection class acc.to IEC 60529 | IP65, IP67 |
