powerMONITOR Breakout Box

opticalCON Breakout Box with powerMONITOR

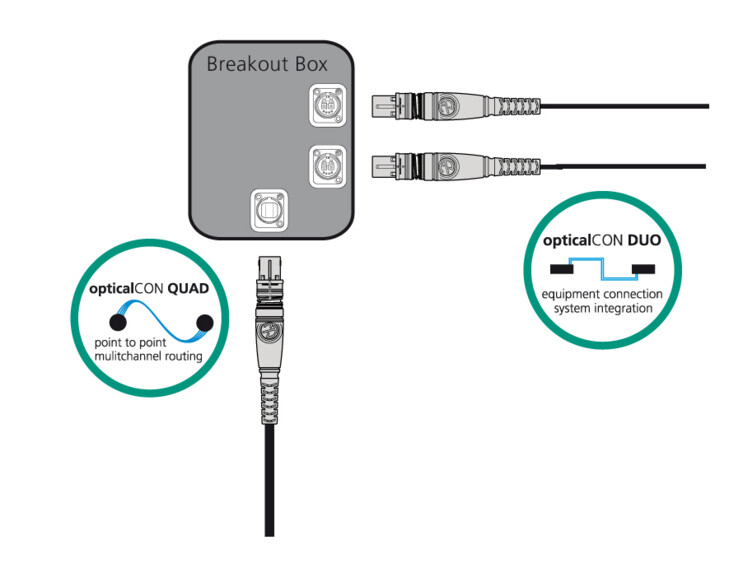

The breakout boxes are used to split a 4-channel point-to-point opticalCON QUAD connection. In mated condition the boxes are dust and water resistant according protection class IP54. The breakout boxes equiped with the opticalCON powerMONITOR offer attenuation measuring for all 4 channels.

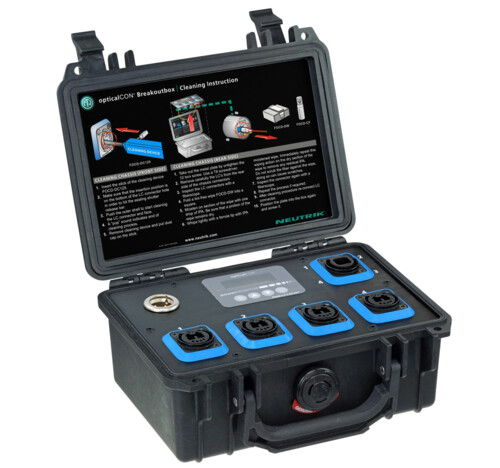

The opticalCON powerMONITOR is a cost-saving, purpose-built measurement (monitoring) device for professional fiber optic broadcast, audio and video applications.

With simultaneous monitoring of attenuation for up to 4 transmission channels, powerMONITOR provides an immediate, "on air" view into fiber optic signal strength. Visual and audible alarms can be set individually for each fiber channel, based on each channel's power budget. powerMONITOR provides clear status information, delivers early warnings for potential problems, and assists with maintenance scheduling.

Download Data Sheet

Selection of topics

Features & Benefits Downloads Distributor Stock Search Technical Information Accessories

Download Data Sheet

Features & Benefits

On-air monitoring of fiber optic transmission quality
Simultaneous power measurement (+0.0/-0.1dB measurement accuracy) of up to 4 channels
Programmable-threshold alarms
Rackmount and mobile units
Operates on rechargeable battery power or on mains power with fail-safe battery backup in case of unexpected mains power interruption
Low loss (0.5dB maximum split loss)
Wavelength selectable: multimode 850 nm or 1300 nm, single mode 1310 nm, 1550 nm or WDM (wave division multiplexing)

Downloads

Frequently Asked Questions

Is the opticalCON powerMONITOR a fiber optic power meter?
The powerMONITOR is more than that. It is able to monitor fiber optic attenuation of up to 4 channels simultaneously even while being on air. The cost effective design allows the widely use of the device in order to establish a comprehensive monitoring of all active fiber optic transmission channels.

Is on air troubleshooting possible with the powerMONITOR?
Yes, this is one of the most distinguishing features compared to an ordinary fiber optic power meter.

Can I save maintenance costs with help of the powerMONITOR?
Yes, you will! The powerMONITOR helps saving money, eliminating the need of fixed maintenance intervals.
It avoids needless cleaning and expensive measurements by reporting attenuation increase related to a fixed value.

Does the powerMONITOR simplify work with fiber optics for laymen?
The powerMONITOR allows defining attenuation thresholds. Attenuation values beyond a defined working range will lead to an alarm, indicating to non fiber specialist clearly that the cable has to be cleaned or that something else happened with the fiber optic transmission line.

Is a network based attenuation monitoring of all active transmission channels possible?
The hardware of the powerMONITOR is prepared to enable such a possibility. The corresponding software could be developed on request.

Part numbers

Product	NO4MBB2D-PM-A	NO4SBB2D-PM-A	NO4SABB2D-PM-A
Input	1 x opticalCON QUAD	1 x opticalCON QUAD	1 x opticalCON QUAD
Output	2 x opticalCON DUO	2 x opticalCON DUO	2 x opticalCON DUO
Fiber Mode	Multimode PC	Single Mode PC	Single Mode APC
Color Coding	Black	Blue	Green

Product	NO4MBB4D-A-PM	NO4SBB4D-A-PM	NO4SABB4D-A-PM
Input	1 x opticalCON QUAD	1 x opticalCON QUAD	1 x opticalCON QUAD
Output	4 x opticalCON DUO (Channel A is connected)	4 x opticalCON DUO (Channel A is connected)	4 x opticalCON DUO (Channel A is connected)
Fiber Mode	Multimode PC	Single Mode PC	Single Mode APC
Color Coding	Black	Blue	Green
