neutrik-uk / Products / powerCON TRUE1 - Schuko cordset (NKPF-S*)

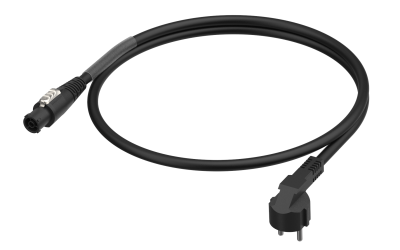

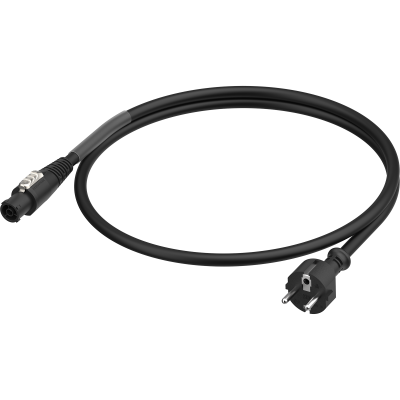

powerCON TRUE1 - Schuko cordset (NKPF-S*)

Download Data Sheet

Ready-made power cord equipped with an overmolded Neutrik powerCON TRUE1 NAC3FX-W and a straight or right angled Schuko connector. The cables are available in different lengths.

Downloads
nkpf-sr
dxf - 1.18 MB
Drawing NKPF-S
pdf - 510.82 KB
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB
Links
UL Certificate (ELBZ2.E343814) cUL Certificate (ELBZ8.E343814)

Distributor stock search

Enter part number and search Neutrik UK distributor's stock.

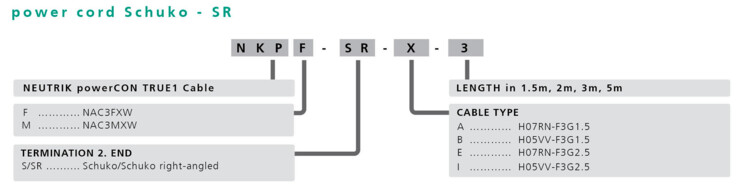

Cable Part Number Breakdown

powerCON TRUE1 Part Number Breakdown Schuko Power Cord
powerCON TRUE1

The powerCON TRUE1 is a locking waterproof 16 A (USA: 20 A) true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Mating scenario powerCON TRUE 1 chassis connector NAC3MPX-W

Mating scenario powerCON TRUE 1 chassis connector NAC3MPX-W

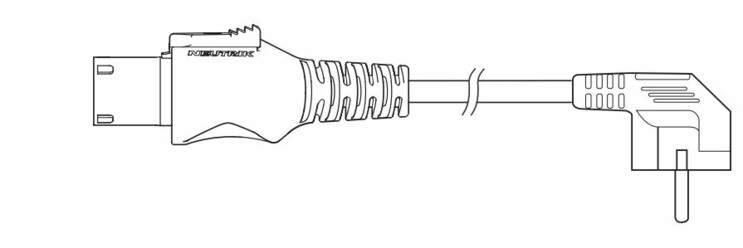

powerCON TRUE1 Schuko Power Cord

powerCON TRUE1 Schuko Power Cord
