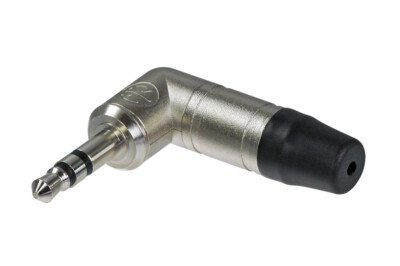

3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, nickel housing, nickel contacts
The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.
Enter part number and search Neutrik UK distributor's stock.
Product | |
Title | NTP3RC |
Connection Type | Plug |
Gender | male |
Electrical | |
Contact resistance | depends on mating connector mΩ |
Dielectric strength | 1 kVdc |
Insulation resistance | > 2 GΩ (initial) |
Rated voltage | <50 V |
Mechanical | |
Cable O.D. | 2 - 4.5 mm |
Wiresize | 0,22 mm² |
Wiresize | 24 AWG |
Wiring | Solder contacts |
Material | |
Bushing | Brass (CuZn39Pb3) + PU, Ni |
Contact plating | 2 µm Ni (Su) |
Contacts | Brass (CuZn39Pb3) |
Insert | Polyamide (PA 6.6 15 % GR) |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Nickel |
Strain relief | Polyacetal (POM) |
Environmental | |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -20 °C to +65 °C |
