NP3X

NP3X

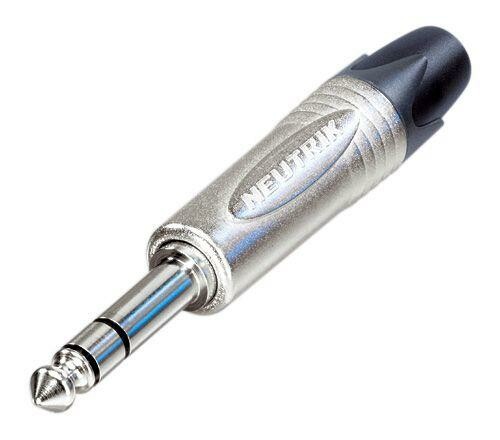

3 pole 1/4" professional phone plug, nickel contacts, nickel shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Distributor Stock Search Technical Information Accessories
Download Data Sheet

Features & Benefits

  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

Downloads

  • Drawing NP3X
  • Drawing NP3X
  • 3D File NP3X
  • Assembly Instruction - Professional Phone Plugs / PX Series
  • Product Guide - Section Plugs and Jacks

Distributor stock search

Enter part number and search Neutrik UK distributor's stock.

Technical Information

Product
Title NP3X
Connection Type Plug
Gender male
Electrical
Contact resistance depends on mating connector mΩ
Dielectric strength 1 kVdc
Insulation resistance > 2 GΩ (initial)
Rated current per contact depends on mating connector A
Rated voltage < 50 V
Mechanical
Cable O.D. 4 - 7 mm
Lifetime > 1000 mating cycles
Wiresize 1 mm²
Wiresize 18 AWG
Wiring Solder contacts
Material
Bushing Polyacetal (POM) + PU
Contact plating 2 µm Ni (Su)
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Standard compliance IEC 60603-11 / EIA RS-453
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +65 °C

Accessories

BPX-0-9
BPX-*
BPX-L
BPX-L

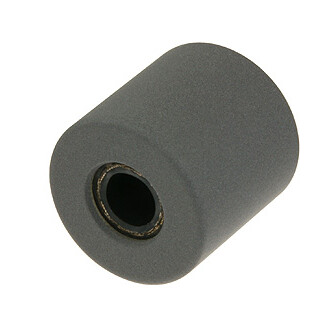

HTPXS
HTPXS
HTX
HTXP
PXR
PXR-*
