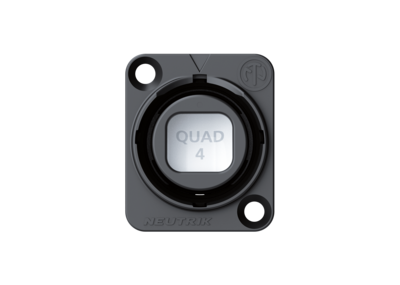

NO4FDW-A - opticalCON QUAD ADVANCED CHASSIS CONNECTOR_topview NO4FDW-A Properly aligned LC Connectors
NO4FDW-A - opticalCON QUAD ADVANCED CHASSIS CONNECTOR_topview
NO4FDW-A

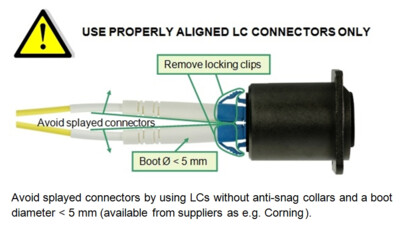

Properly aligned LC Connectors
1/3
neutrik-uk / Products / NO4FDW-A

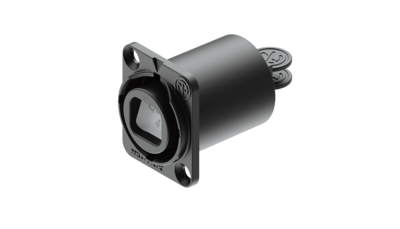

NO4FDW-A

Download Data Sheet

Chassis connector, black chromium plating, front panel mount, IP65 ingress protection in mated condition with SCDP-*.

The chassis connector acts as a "feed-through" allowing simplified installations by connecting four conventional LCs on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

Features & Benefits
  • Rugged 4-channel Point-to-Point multichannel routing solution
  • Laser protected metal shutter seals dust proof with two-component rubber gasket
  • IP65 ingress protection in mated condition with SCDP-*
  • Accommodates standard LC connectors on the rear for cost effective and simple installations
  • Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard
    Multi mode – black
    Single mode PC – blue
    Single mode APC – green
Downloads
3D Ansicht NO4FDW-A
stp - 6.72 MB
Strichzeichnung NO4FDW-A
pdf - 314.8 KB
Strichzeichnung NO4FDW-A
dxf - 14.03 MB
BDA 522 V2 - opticalCON QUAD Handling Instruction
pdf - 3.55 MB
reference-projects---opticalcon
pdf - 4.96 MB
NEUTRIK opticalCON Guide – NF05 V30 – 202410
pdf - 43.46 MB

Technical Information

Product
Title NO4FDW-A
Gender female
Mechanical
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 5000 mating cycles
Wiresize
Locking device Push-Pull
Mounting direction Front mounting
Chassis shape D
Material
Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Environmental
Temperature range -40 °C to +75 °C
Protection class IP65 in mated condition in combination with SCDP-*
Optical
Insertion loss < 0.5 dB / connection
Accessories
audio
LC Patch Cable
CAS-FOCD-ADV

Fiber optic cleaning kit

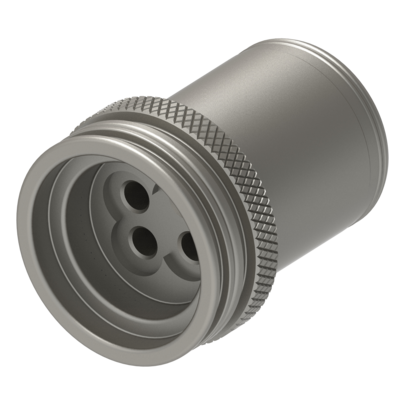

FOID-STQC

Service Tool for the opticalCON QUAD chassis connector NO4FDW-A

audio
NAOBO

Breakout-Adapter-Kit

audio
NDO

The dummyPLUG NDO for Neutrik opticalCON receptacles enables you to simplify cabling.

audio
NZPF1RU

1RU opticalCON panel frame

audio
NZPF3RU

3RU opticalCON panel frame

NZP1RU-8

Angled rack panel for D-shape connectors

audio
NZPFD

Panel frame plate opticalCON for opticalCON DUO or QUAD chassis connector

audio
NZPFD-2

Panel frame plate opticalCON for 2 opticalCON DUO or QUAD chassis connectors

audio
NZPFD-4SC

*** DISCONTINUED *** Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and two SC duplex chassis connectors

NZPFD-4SC-S

Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and four SC simplex or four Single E2000 feedthroughs

audio
NZPFD-4ST

*** DISCONTINUED *** Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and four ST chassis connectors

audio
opticalCON QUAD loop Connector

Allows cost effective and low space loops in fiber optic networks

audio
SCDR

Soft plastic cover for the rear ends of several D-size chassis connectors.

audio
SCDX

Hinged cover

SCDP-FX-*

Sealing gasket for D-shape chassis connectors, 6 colors

SCNO-FDW-A

Rugged, all metal sealing cover for opticalCON chassis connectors

SCD-NC

Rugged rubber sealing cover for opticalCON chassis connectors

SCCD-W

Spring-loaded sealing cover
