NLT8FPXX-BAG
neutrik-uk / Products / speakON® Loudspeaker Connectors / speakON® Chassis Connectors / STXX Series / NLT8FPXX-BAG

NLT8FPXX-BAG

Download Data Sheet

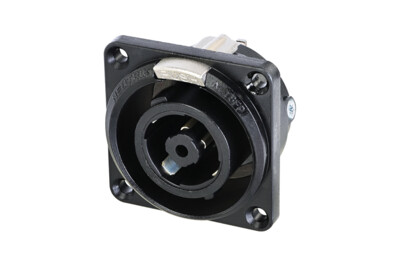

8 pole female chassis connector, metal square black G-size housing, countersunk thru holes, solder contacts.

This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.

The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.

Features & Benefits
  • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
  • Current rating 30 A rms
  • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
  • Uses precise “Quick Lock” system
  • Compatible with complete speakON 8 pole product series
Downloads
st-nlt8fpxx
pdf - 149.3 KB
st-nlt8fpxx
dxf - 1.36 MB
nlt8fpxx
stp - 9.04 MB
Certificate_CB_NL-73940
pdf - 246.43 KB
Certificate ETL 105487593ATL-001A (2024-08-22)
pdf - 92.47 KB

Technical Information

Product
Title NLT8FPXX-BAG
Gender female
Electrical
Contact resistance < 2 mΩ
Dielectric strength 1.5 kVac
Insulation resistance > 0.1 GΩ (after dampheat)
Rated current per contact 25 A rms continuous (acc. to IEC 61984)
Rated voltage 250 V ac
Attention speakON is NOT to be used as an mains or power supply connector (AC / DC)!
Mechanical
Lifetime > 5000 mating cycles
Wiresize 1.5 mm² - 6 mm²
Wiresize 10 AWG
Termination solder contacts
Locking device Quick Lock
Mounting direction Front mounting
Chassis shape square G-size flange
Layout four thru holes
Material
Contact plating Ag
Contacts Copper Alloy
Shell Zinc diecast, black chrome plated
Insert Polyamide (PA 6.6)
Environmental
Temperature range -30 °C to +80 °C
Flammability UL 94 V-0
Protection class IP 50 (mated condition)
Solderability Complies with IEC 68-2-20
