NKE6S-*

Download Data Sheet

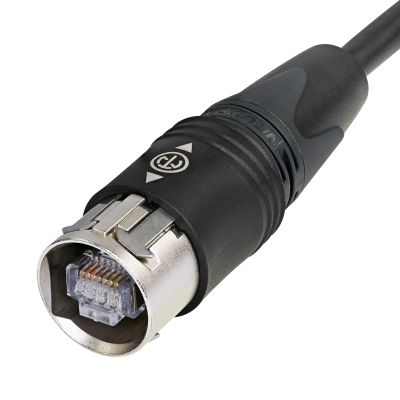

The preassembled etherCON CAT6 patch cables use a shielded S/FTP cable with cable plug carrier offering a robust metal shell and Push-Pull locking system.

Attention! Intermates ONLY with NE8FDY-C6* Cat 6 receptacles.
Not compatible with CAT5 and CAT6A chassis connectors.

Features & Benefits
  • CAT6 compliant - data rate up to 10 GBit/s
  • CAT6 performance - fast data transmission and high bandwidth applications
  • CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
  • IP65 - Dust and waterproof in mated condition
  • Shielded system - high noise immunity and EMI protection
  • Push Pull mating - secure and proven locking system
  • Ready made patch cables with rugged cable carrier and unique chuck-type strain relief



    Downloads
    nke6s-1
    pdf - 58.34 KB
    nke6s-1-1
    dxf - 539.96 KB
    3p-attestion-of-conformity
    pdf - 54.59 KB
    3p-electrical-performance-testing
    pdf - 27.53 KB
    delta-attestion-of-conformity
    pdf - 48 KB
    ghmt-certificate
    pdf - 52.36 KB
    experts-report-ethercon-cat6
    pdf - 134.06 KB

    Technical Information

    Product
    Title NKE6S-*
    Gender male
    Electrical
    Contact resistance < 10 mΩ
    Dielectric strength 1 kVdc
    Frequencyrange 1 - 250 MHz
    Insulation resistance ≥ 0.5 GΩ
    Rated current per contact 1,5 A
    Rated voltage < 50 V
    Mechanical
    Insertion force ≤ 40 N
    Withdrawal force ≤ 20 N
    Lifetime > 1000 mating cycles
    Wiresize 8 x AWG 27/7 mm²
    Locking device Push-Pull
    Material
    Boot Polyurethan
    Contact plating 0.7 µm Au over 1.2 µm Ni plating
    Contacts Bronze (CuSn8)
    Insert Polyamide (PA 6.6 30 % GR)
    Shell Zinc diecast (ZnAl4Cu1)
    Shell plating Nickel
    Strain relief Polyacetal (POM)
    Environmental
    Flammability UL 94 HB
    Standard compliance CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173
    Protection class IP 65
    Temperature range -10 °C to +60 °C

    Distributor stock search

    Enter part number and search Neutrik UK distributor's stock.

    Ordering Information

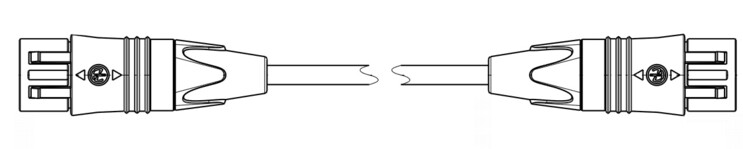

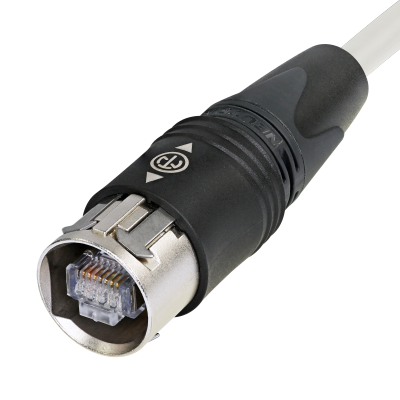

    NKE6S-* Both cable ends with cable plug carrier, e.g. NKE6S-3

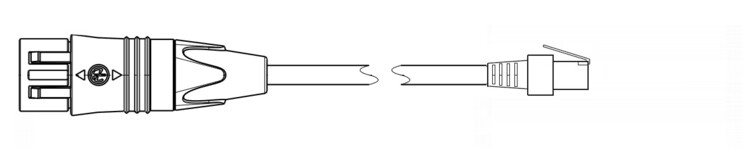

    NKE6S-*-WOC Only one cable end with cable plug carrier, e.g. NKE6S-3-WOC
