NC4MX-TOP
neutrik-uk / Products / XLR Connectors / XLR Cable Connectors / TOP Series / NC4MX-TOP

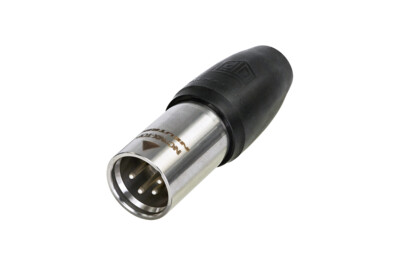

NC4MX-TOP

Download Data Sheet

4 pole male cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts

The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable connector of the XLR TOP range (IP65).

Gold contacts are standard.

Features & Benefits
  • Heavy-duty sealed XLR connector range for harsh and demanding environment
  • Outdoor protection according to IP65
  • Uses high impact UV resistant materials
  • IEC 61984 certified
Downloads
30009723_-_NC4MX-TOP
stp - 2.11 MB
20003622_-_NC4MX-TOP
pdf - 131.05 KB
BDA 637 V2 - XLR TOP - NC4FX-TOP + NC10FX-TOP
pdf - 2.13 MB

Technical Information

Product
Title NC4MX-TOP
Connection type XLR
Gender Male
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 10 A
Rated voltage 50 V
Mechanical
Cable O.D. 5.0 – 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize < 2.5 mm²
16 AWG
Wiring Solder contacts
Locking device Latch lock
Material
Bushing UV-resistant rubber
Contact plating Gold (Au) over Nickel (Ni)
Contacts Brass
Insert Polyamide
Locking element St3K32 (latch) / Ck 67 (spring)
Shell Zinc diecast
Shell plating Nickel
Strain relief Polyacetal
Sealing jacket UV-resistant rubber
Environmental
Flammability acc. to UL94 V-0 (insert)
Standard compliance IEC 61076-2-103
Protection class acc. IEC 60529 IP65 (mated)
Solderability acc. to IEC 60068-2-20
Temperature range -30 °C to +80 °C
Pollution degree acc. to IEC 60664-1 II
Accessories
Dichtkappe_SCMX-TOP_persp front liegend_RGB_WEB.png
SCMX-TOP

The rubber sealing cover protects the XLR male TOP connectors NC*MX-TOP & etherCON TOP cable connector NE8MX-TOP from dust and water according to protection class IP65.
