NC10MX-TOP
neutrik-uk / Products / 8 + 2 pole XLR / 8 + 2 pole XLR Cable Connectors / NC10MX-TOP

NC10MX-TOP

Download Data Sheet

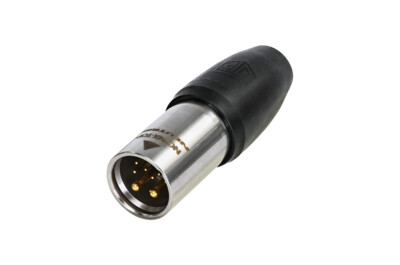

8+2 pole male cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts

The X-TOP series is a "heavy-duty" XLR cable connector series for outdoor use. IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range

Features & Benefits
  • Heavy-duty sealed XLR connector range for harsh and demanding environment
  • Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
  • IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
  • Superior ruggedness compared to RJ45 type connectors
  • High impact UV resistant materials
  • IEC 61984 certified
Downloads
20003537_-_NC10MX-TOP
pdf - 138.54 KB
30009725_-_NC10MX-TOP
stp - 2.65 MB
BDA 637 V2 - XLR TOP - NC4FX-TOP + NC10FX-TOP
pdf - 2.13 MB

Technical Information

Product
Title NC10MX-TOP
Connection Type XLR
Gender Male
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 1 kVdc
Insulation resistance > 10 GΩ (initial)
Number of electronical contacts 8 + 2
Rated current per contact 16 A (power pins), 3 A (data pins)
Rated voltage 50 V
Cable shield - shell connection: choosable
Transmission performance CAT 5e
Mechanical
Cable O.D. 7.0 - 10.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize 2.5 mm²/<1 mm²
8 x 24 AWG + 2 x 16AWG
Type of terminations Solder contacts
Locking device Latch lock
Material
Bushing UV-resistant rubber
Contact plating Gold (Au) over Nickel (Ni)
Contacts Brass
Insert Polyamide
Locking element St3K32 (latch) / Ck 67 (spring)
Shell Zinc diecast
Shell plating Nickel
Strain relief Polyacetal
Sealing jacket UV-resistant rubber
Environmental
Flammability acc. to UL94 V-0 (insert)
Standard compliance IEC 61076-2-103
Protection class acc. IEC 60529 IP65 (mated)
Solderability acc. to IEC 60068-2-20
Temperature range -30 °C to +80 °C
Pollution degree II
Accessories
Dichtkappe_SCMX-TOP_persp front liegend_RGB_WEB.png
SCMX-TOP

The rubber sealing cover protects the XLR male TOP connectors NC*MX-TOP & etherCON TOP cable connector NE8MX-TOP from dust and water according to protection class IP65.
