NC10MD-LX-B
neutrik-uk / Products / NC10MD-LX-B

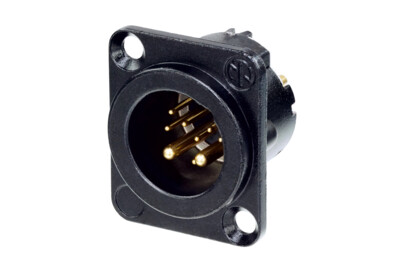

NC10MD-LX-B

Download Data Sheet

10 pole male D-size receptacle, black chrome metal housing, duplex ground contact

Easy to assemble 10 pole XLR connectors with secure locking and proven Neutrik chuck type strain relief.

Features & Benefits
  • Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
  • Superior ruggedness compared to RJ45 type connectors
  • All metal housing offers best overall RF protection and electromagnetic shielding
  • D-size housing provides installation compatibility with industry standard D mounting dimensions
  • Receptacle with duplex ground contact for excellent signal integrity
Downloads
application-note-8-2-pole-xlr
pdf - 397.91 KB
01 NEUTRIK Section XLR Connectors PG EN 202202-V23_opt
pdf - 3.6 MB
st-nc10md-lx
dxf - 595.18 KB
st-nc10md-lx-1
pdf - 65.13 KB
3-d-nc10md-lx
stp - 211.92 KB

Technical Information

Product
Title NC10MD-LX-B
Type Chassis
Connection Type XLR
Gender male
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 1 kVdc (initial), 0.1 GΩ (after damp heat test)
Insulation resistance > 10 GΩ
Number of electronical contacts 8 + 2
Rated current per contact 16 A (power pins), 3 A (data pins)
Rated voltage < 50 V
Transmission performance CAT 5e
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize 2.5 mm²

/ AWG 14 (power pins), 1 mm² / AWG 18 (data pins)

Material
Contact plating 0.2 µm Au hard alloy over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert PA66
Locking element Steel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Environmental
Flammability UL 94 V-0
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Manufacturing Standard IEC 61076-2-103
Accessories
CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

audio
DBA-BL

Dummy-plate to cover D-shape cutouts

audio
DSS-*

Colored lettering plate for D-shape-connectors

MFD

M3 mounting frame

audio

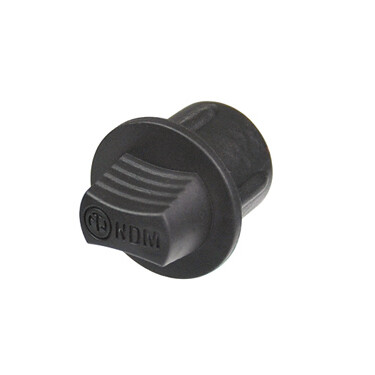

NDM

dummyPLUG for male XLR receptacles

audio

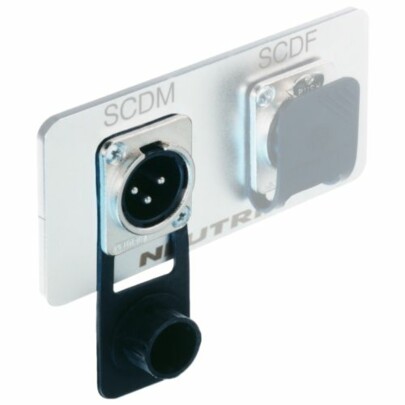

SCDM

Rubber sealing cover for XLR D-Series male and speakON NL2M* and NL4M*

audio
SCDR

Soft plastic cover for the rear ends of several D-size chassis connectors.

audio
SCDX

Hinged cover

audio

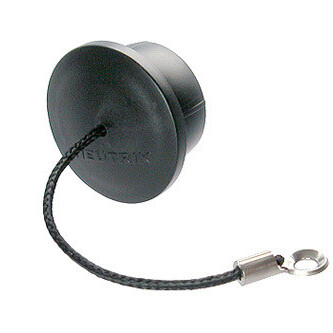

SCM

Dust protection cover for male chassis connectors

SCCD-W

Spring-loaded sealing cover
