NC10FXX-14-B
neutrik-uk / Products / NC10FXX-14-B

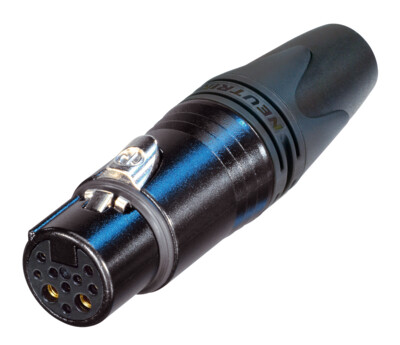

NC10FXX-14-B

Download Data Sheet

Easy to assemble 8 + 2 pole female XLR connector, black chrome metal housing, secure locking and proven Neutrik chuck type strain relief

Features & Benefits
  • Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
  • Superior ruggedness compared to RJ45 type connectors
  • All metal housing offers best overall RF protection and electromagnetic shielding
Downloads
3D Model NC10FXX-14-B
stp - 3.75 MB
st-nc10fxx-14-1
pdf - 155.98 KB
st-nc10fxx-14
dxf - 1.46 MB
application-note-8-2-pole-xlr
pdf - 397.91 KB
01 NEUTRIK Section XLR Connectors PG EN 202202-V23_opt
pdf - 3.6 MB
bda-482---10-pole-xlr-cable-connector-nc10fxx-and-nc10mxx
pdf - 1.11 MB

Technical Information

Product
Title NC10FXX-14-B
Connection Type XLR
Gender female
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 1 kVdc
Insulation resistance > 10 GΩ (initial); 0.1 (after damp heat test)
Number of electronical contacts 8 + 2
Rated current per contact 16 A (power pins), 3 A (data pins)
Cable shield - shell connection: choosable
Transmission performance CAT 5e
Mechanical
Cable O.D. 8.0 - 10.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize 2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins)
Material
Bushing PA / PU
Contact plating 0.2 µm Au hard alloy over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert PA66
Locking element Zinc diecast (ZnAl4Cu1)
Locking element plating Nickel
Shell Zinc diecast (ZnAl4Cu1)
Shell coating Black KTL
Strain relief POM
Environmental
Flammability UL 94 V-0
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Manufacturing Standard IEC 61076-2-103
Accessories
HTXX-14

Hand tool for tightening the bushing of the XLR XX-14 series, jumboPLUG and etherCON CAT6A series.

audio
XXR-*

Colored coding rings. Color ring can be changed without unsoldering insert.

audio
XXCR

Transparent coding ring which allows an individual customized labeling, branding, coding etc.
