NAUSB3
neutrik-uk / Products / NAUSB3

NAUSB3

Download Data Sheet

Reversible USB 3.0 gender changer (type A and B), Nickel D-housing

The NAUSB3 is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector.

Not compatible with NKUSB-* cables.

Features & Benefits
  • USB 3.0 feedthrough adapter
  • Reversible insert offering type A or B on front or rear end
  • Standard D-shape housing
  • Removable screen for chassis grounding
  • Meets USB 3.0 specifications



Downloads
nausb3
dxf - 1.31 MB
nausb3-1
pdf - 140.89 KB
3-d-nausb3
stp - 163.28 KB

Technical Information

Product
Title NAUSB3
Connection Type Adapter
Gender female
Electrical
Reading / Writing speed >200 MB/s
Mechanical
Wiresize
Mounting direction Front mounting
Chassis shape D
Lifetime > 1000 mating cycles
Material
Contact plating Au
Contacts Bronze (CuSn)
Insert PBTP 15 % GR
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Environmental
Flammability UL 94 V-0
Standard compliance USB 3.0 specifications
Temperature range -25 °C to +85 °C
Accessories
audio
DSS-*

Colored lettering plate for D-shape-connectors

MFD

M3 mounting frame

audio
SCDX

Hinged cover

SCD-W

Universal sealing cap

SCCD-W

Spring-loaded sealing cover

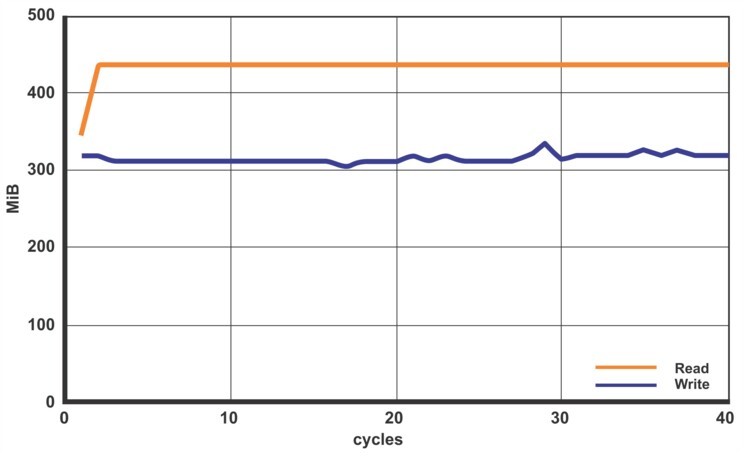

USB 3.0 Performance

To meet the USB3.0 specifications the NAUSB3* chassis contain tight tolerance pin wiring and an improved ground connection due to an additional copper film between the USB jacks. As a result the feed through adapter guarantees permanent writing and reading speed > 200 MB/s.

NAUSB3 Performance
Gender Changeable

Certain applications require that the USB 3.0 type A or type B jack is on front to connect end devices like hard disk, cameras, etc. The connector configuration of the NAUSB3* can be changed by rotating the USB insert without special tools.

USB Type A in front

NAUSB3

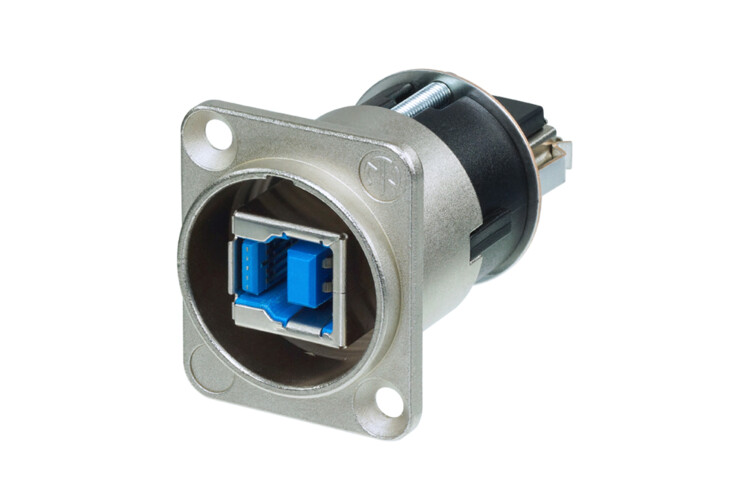

USB Type B in front

NAUSB3 TypeB in front

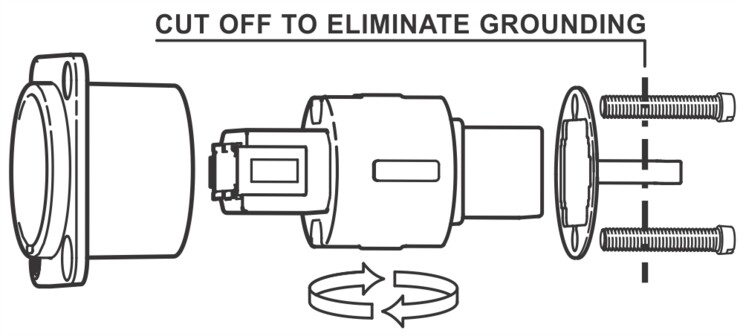

Optimized Ground Connection

An additional metal lip guarantees optimum ground connection from USB 3.0 jack to the D-size flange in order to achieve a consistent ground level. To eliminate the ground connection pinch off the metal lip.

Remove grounding NAUSB3
Cable lengths

We recommend to use USB-IF certified cables to ensure error-free data transmission. Maximal length of USB-IF certified USB 3.0 passive cable is 2.0 meters.

NAUSB3 Type B in front

NAUSB3 TypeB in front
