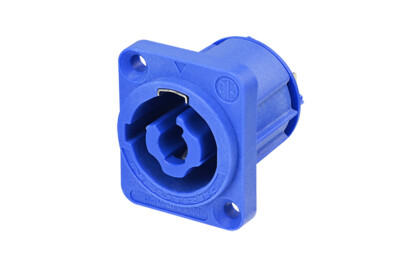

NAC3MPXXA-WOT
neutrik-uk / Products / NAC3MPXXA-WOT

NAC3MPXXA-WOT

Download Data Sheet

Appliance inlet connector, 3/16" flat tab terminals, blue, without insulation divider for PCB mounting only. If nothing mounting on a PCB choose NAC3MPXXA

The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.

This connector is suitable to be used as part of fire enclosures according to IEC 62368-1

This appliance coupler fulfils the requirements of the IEC 60320-1 and of theUL 60320-1 with breaking capacity (CBC).

Appliance coupler have superior electrical endurance due to its CBC design according to the IEC 60320-1.
Appliance couplers NAC3MPXXA and NAC3MPXXB are designed to be engaged or disengaged in normal use when live or under load when using with connectors and plug connectors of the FXX Serie(s).

Features & Benefits
  • Lockable single phase connector
  • Certified according to IEC 60320-1 & UL 60320-1
    UL US 498 / UL CA 498
  • Certified according to UL-1977, & CAN/CSA-C22.2 No. 182.3
  • Extremely robust and reliable
  • UL94 V-0 materials
  • Drop-in replacement for NAC3MXXA-WOT; mates to NAC3FXXA cable connectors
  • 3 contacts for line, neutral and premating safety ground
  • Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Suitable for fire enclosures according. to IEC 62368-1
Downloads
Assembly recommendation of powerCON chassis connector
pdf - 572.26 KB
ST-NAC3MPXXB-WOT
pdf - 329.75 KB
st-nac3mpxxa-wot
dxf - 1.22 MB
nac3mpxxa-wot
stp - 3.56 MB
Certificate_ENEC_40051940 (2023-07-17)
pdf - 312.77 KB
Intertek Certificate UL-1977 and CANCSA-C22
pdf - 83.36 KB
Intertek Certificate UL 60320 and CANCSA 22
pdf - 88.87 KB
Certificate_UL_UL-CA-2544438-0 (2025-03-17)
pdf - 169.94 KB
Certificate_UL_UL-US-2438966-1 (2025-03-17)
pdf - 227.67 KB

Technical Information

Product
Title NAC3MPXXA-WOT
Gender male
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 1 GΩ (after damp heat test IEC 68-2-30)
Number of electrical contacts 2 + PE
Rating Europe EN 60320-1: 16 A 250 V AC
Rating USA / Canada cUL 60320-1: 20 A 127 V AC
UL USA 498: 20 A 250 V AC
UL CA 498: 20 A 250 V AC
UL 1977: 20 A 250 V AC
Mechanical
Lifetime > 5000 mating cycles
Wiresize 2,5 mm²
Wiresize 12 AWG
Material
Contact plating Ag
Locking element Stainless steel
Shell Polyamide (PA 6.6)
Contacts Copper Alloy
Environmental
Flammability UL 94 V-0
Temperature range -30 °C to + 80 °C
Solderability (for PCB) Complies with IEC 68-2-20
Accessories
powerCON_SCNAC-01_persp front_RGB_WEB.png
SCNAC-01

D-size rubber sealing cover SCNAC-01 for  powerCON TRUE1 TOP NAC3MPX* and PowerCON 20A NAC3MPXXA* and NAC3MPA-*

CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

MFD

M3 mounting frame

audio
NDL

The dummyPLUG NDL for all 4 pole Neutrik speakON and powerCON chassis enables you to simplify cabling.

audio
SCDR

Soft plastic cover for the rear ends of several D-size chassis connectors.

audio
SCDX

Hinged cover

audio
SCL

Dust protection cover for most speakON and powerCON chassis connectors

SCCD-W

Spring-loaded sealing cover

SCD-W

Universal sealing cap
