NAC3MPX-TOP
Appliance inlet connector, 1/4" flat tab terminals

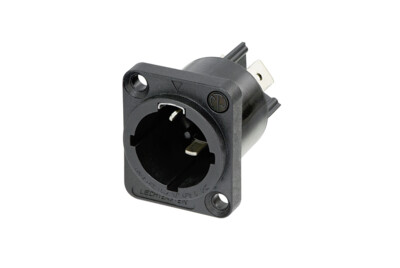

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features & Benefits
- Heavy duty sealed power connector for harsh and demanding environment
- Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-MPX)
- Uses high impact UV-resistant materials
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Easy and reliable twist lock system
- Extremely robust and reliable
- Unique Neutrik cable retention
- ENEC certified according to IEC 60320
- UL498 certified
Downloads
nac3mpx-top
stp - 2.59 MB
st-nac3mpx-top
pdf - 127.5 KB
st-nac3mpx-top
dxf - 1006.37 KB
BDA 544 V3 - powerCON TRUE1 TOP - NAC3MPX-TOP + NAC3MPX-WOT-TOP
pdf - 1.2 MB
Neutrik TOP Products - NF23 V07 202111
pdf - 5.03 MB
Certificate_ENEC_40033493 (2023-10-06)
pdf - 315.58 KB
Certificate_CB_DE1-67967
pdf - 98.73 KB
Certificate_UL_E343813-20110501 (2024-05-08)
pdf - 436.33 KB
Technical Information
| Product | |
|---|---|
| Title | NAC3MPX-TOP |
| Electrical | |
|---|---|
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 0.1 GΩ (after damp heat test) |
| Number of electrical contacts | 2 + PE |
| Rated current per contact | 16 A rms (USA: 20 A) |
| Rated voltage | 250 V ac |
| Mechanical | |
|---|---|
| Lifetime | > 5000 mating cycles |
| Wiresize | 2.5 mm² |
| Wiresize | 12 AWG |
| Material | |
|---|---|
| Contact plating | 2 µm Ag |
| Locking element | Stainless steel |
| Shell | Polyamide (PA 6.6) |
| Contacts | Spring Copper (CuSn0.2) |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Protection class | IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-MPX) |
| Temperature range | -30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1 |
