NAC3MPB-1-WOT
neutrik-uk / Products / NAC3MPB-1-WOT

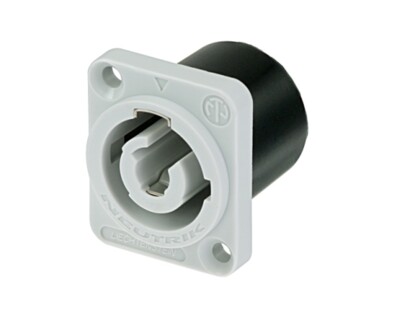

NAC3MPB-1-WOT

Download Data Sheet

Chassis connector, power-out, 3/16'' flat tab terminals, grey, without insulation divider

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

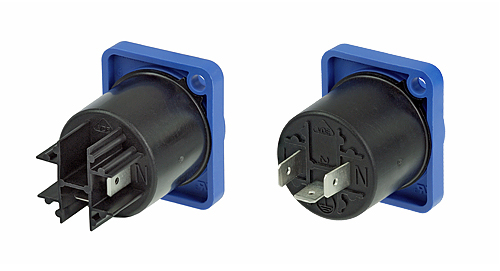

NAC3MPA-1                       NAC3MPA-1-WOT

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

Features & Benefits
  • Locking 20 A / 250 V ac appliance coupler
  • 3 contacts for line, neutral and premating safety ground
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling
  • UL, cUL recognized components
    VDE certified
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
Downloads
Certificate_VDE_40014741 (2022-02-25)
pdf - 324.23 KB
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB
BDA 454 V3 - powerCON - NAC3MPA-1 + NAC3MPB-1
pdf - 1.68 MB
20001253
pdf - 136.38 KB
20001253
dxf - 516.9 KB
Links
UL Certificate (ECBT2.E135070) cUL Certificate (ECBT8.E135070)

Technical Information

Product
Title NAC3MPB-1-WOT
Type Chassis
Gender male
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0.1 GΩ (after damp heat test IEC 68-2-30)
Number of electrical contacts 2 + PE
Rating Europe EN 61984:20 A 250 V AC
Rating USA UL 1977:20 A 250 V AC
Mechanical
Lifetime > 1000 mating cycles
Wiresize 2.5mm²
12 AWG
Locking device Quick Lock
Mounting direction Front mounting
Chassis shape D
Material
Contact plating 2 µm Ag
Locking element Steel Ck67
Shell Polyamide (PA 6 30 % GR)
Contacts Bronze (CuNi1Si0.2)
Environmental
Flammability UL 94 V-0
Temperature range -30 °C to +80 °C
Accessories
CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

MFD

M3 mounting frame

audio
NDL

The dummyPLUG NDL for all 4 pole Neutrik speakON and powerCON chassis enables you to simplify cabling.

NLFASTON

Faston receptacle for tabs with 'positive lock', Tab Fit 4.75 x 0.51 mm (0.187 x 0.02 in), Equivalent to AMP, pack of 100 pcs

audio
SCDR

Soft plastic cover for the rear ends of several D-size chassis connectors.

audio
SCDX

Hinged cover

audio
SCL

Dust protection cover for most speakON and powerCON chassis connectors

SCCD-W

Spring-loaded sealing cover

SCD-W

Universal sealing cap
