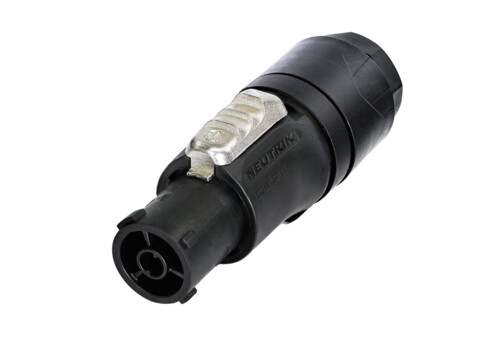

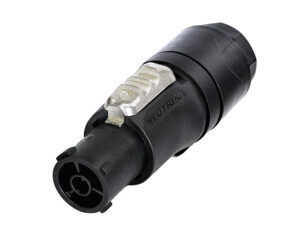

NAC3FX-W-TOP-L

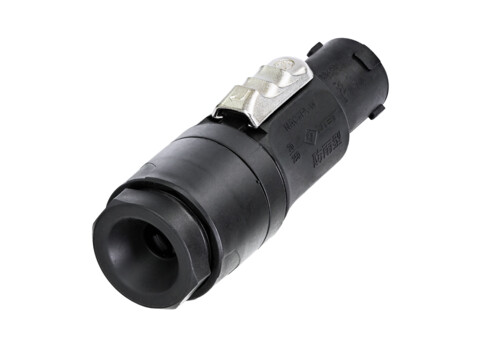

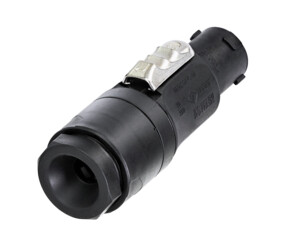

NAC3FX-W-TOP-L_Rear

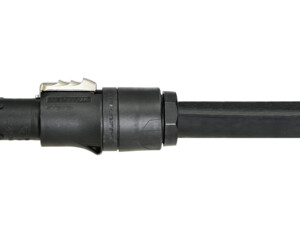

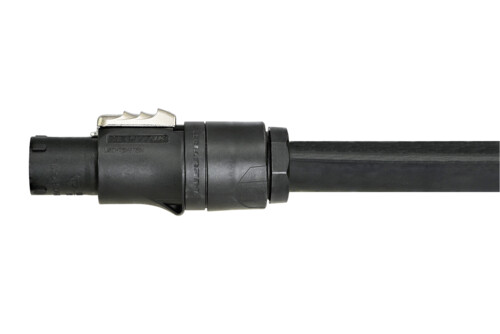

NAC3FX-W-TOP-L_Side_view_with_Cable_SOOW

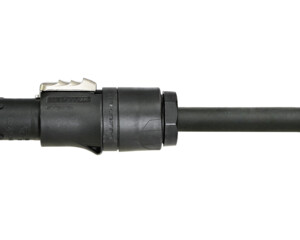

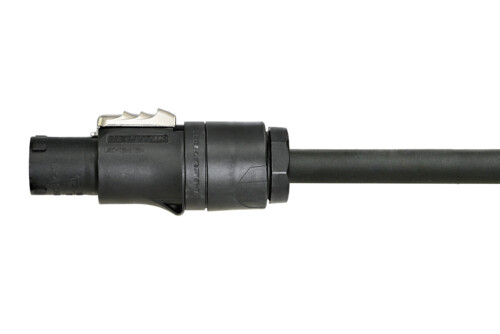

NAC3FX-W-TOP-L_Side_view_with_Cable_H07RN-F

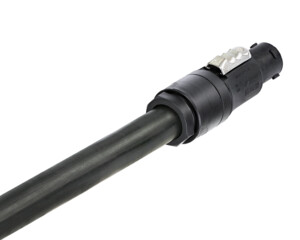

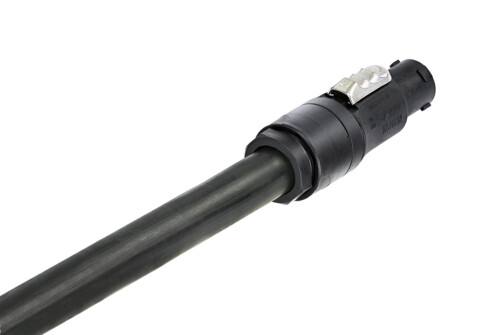

NAC3FX-W-TOP-L_Rear_with_Cable_SOOW
1/5
neutrik-uk / Products / powerCON® / powerCON® TRUE1 / powerCON® TRUE1 Cable Connectors / NAC3FX-W-TOP-L

NAC3FX-W-TOP-L

Download Data Sheet

PHASE OUT
direct replacement / successor: NAC3F-TRUE1-L



Locking female cable connector for big power cord diameters 10–16 mm (0.39–0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3 / SOOW 14/3. Certified to EN/UL 60320-1.

Power out, screw terminals, IP65, up to 16 A (USA: 20A)

The powerCON TRUE1 TOP is a single phase connector for outdoor applications with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features & Benefits
  • For cable diameters 10-16 mm (0.39 – 0.63 inches)
  • IEC EN 60320-1 and UL 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 and of equipment acc. to IEC 62368-1
  • Heavy duty sealed power connector for harsh and demanding environment
  • TOP True Outdoor Protection
  • Uses high impact UV-resistant materials
  • Single phase connector with Circuit Breaking Capability (20 A 250 VAC)
  • Extremely robust and reliable cable retention
  • Superior NEUTRIK quality standard
Downloads
BDA 624 V5 - powerCON Cable Connector Female NAC3FX-W-TOP-L
pdf - 4.88 MB
Application Note TRUE1-TOP-L V2 20220128
pdf - 102.47 KB
Certificate UL E343813 (2023-01-03)
pdf - 202.49 KB
Neutrik TOP Products - NF23 V07 202111
pdf - 5.03 MB
VDE Certificate ENEC10VDE NAC3FX-W-TOP NAC3FX-W-TOP-L
pdf - 310.98 KB

Technical Information

Product
Title NAC3FX-W-TOP-L
Connector series powerCON TRUE1 TOP
Electrical
Dieletric strength 2.8 kVac
Insulation resistance > 0.1 GΩ
Number of electronical contacts 2 + PE
Rating Europe IEC EN 60320-1: 16 A 250 V AC
Certified with cable types: H07RN-F3G2.5
Rating USA UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC
Certified with cable types:
- SOOW 12/3, SOOW 14/3
- SJOOW 12/3
Mechanical
Cable O.D. 10 – 16 mm (0.39 – 0.63 inches)
Lifetime Typically 5’000 mating cycles
Wire size (mm²) 2.5 mm²
Wire size (AWG) 14 – 12 AWG
Material
Contact plating 2 µm Ag
Contacts Bronze (CuSn0.2)
Insert Polyamide (PA 6.6 30 % GR)
Locking element ZuAl4Cu1
Shell Polyamide (PA 6.6 30 % GR)
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Protection class IP65, UL50E enclosure type 4 (mated)
Temperature range -30 °C to +80 °C
Accessories
HTLACA View 2.png
HTLACA

Hand tool for tightening the bushing of the powerCON TRUE1 TOP, FXX and speakON FXX series

HTLACB

Hand tool for tightening the bushing of the powerCON TRUE1 TOP, FXX and speakON FXX series

Dichtkappe_SCNAC-FX_persp front liegend_RGB_WEB.png
SCNAC-FX

The rubber sealing cover protects the powerCON TRUE1 TOP NAC3FX-W-TOP from dust and water according to protection class IP65.

Product related questions and answers
Question Answer
Is the new cable entry patented? There is a patent application in process which is related to the cable entry section.
How are the certifications different to the current version NAC3*X-W-TOP? EN certification:
Both versions are certified according to EN 60320-1.
The new L-version however is certified for large cables as follows:
H07RN-F 3G 2,5 mm²
The old version is certified for cable types:
H07RN-F 3G 1,5 mm² and H05VV-F 3G 1,0 - 2,5 mm²
UL certification:
The new L-version is certified according to UL 60320-1 for cables SOOW 12/3 and SOOW 14/3. The old version is certified according to UL 498.
JET certification:
Both versions are JET certified.
What are the mechanical differences to the current version NAC3*X-W-TOP? The whole cable entry section had to be redesigned in order to:
- To cover the large cable range (10 - 16mm)
- To meet the standards requirement to prevent disassembling by hand
- To improve the assembly process
The housing and insert parts are the same
When is the IEC 60799 relevant? This standard applies for "Cord Sets And Interconnection Cord Sets" and therefore covers cables to the mains and cables acting as power interconnections.
Why is the bushing loose in one direction? This is to meet the standards requirement to prevent disassembling by hand. In order to open the cable entry a special tool will be required.
