NAC3FX-W-TOP

Download Data Sheet

PHASE OUT
direct replacement / successor: NAC3F-TRUE1-S

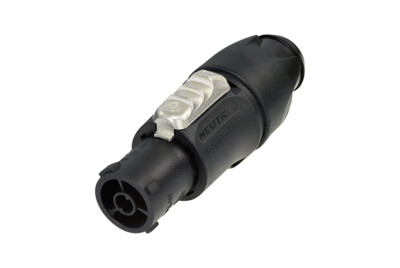

Locking female cable connector, screw terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features & Benefits
  • Heavy duty sealed power connector for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL498 certified
Downloads
st-nac3fx-w-top
pdf - 414.31 KB
st-nac3fx-w-top
dxf - 3.72 MB
nac3fx-w-top
stp - 7.54 MB
BDA 541 V5 - powerCON TRUE1 TOP - NAC3FX-W-TOP
pdf - 5.94 MB
Neutrik TOP Products - NF23 V07 202111
pdf - 5.03 MB
BDA 559 V3 - powerCON TRUE1 TOP SAFETY NOTICE
pdf - 5.05 MB
BDA 557 V3 - powerCON TRUE1 TOP Power IN - Operating Instruction
pdf - 4.98 MB
BDA 556 V3 - powerCON TRUE1 TOP Cable Connector - Operating Instruction
pdf - 4.93 MB
Certificate UL E343813 (2023-01-03)
pdf - 202.49 KB
VDE Certificate ENEC10VDE NAC3FX-W-TOP NAC3FX-W-TOP-L
pdf - 310.98 KB
Links
UL Certificate (AXUT2.E343813) cUL Certificate (AXUT8.E343813)

Technical Information

Product
Title NAC3FX-W-TOP
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0,1 GΩ (after damp heat test IEC 68-2-30)
Number of electronical contacts 2 + PE
Rated current per contact 16 A rms (USA: 20 A)
Rated voltage 250 V ac
Mechanical
Cable O.D. 6 - 12 mm
Lifetime > 5000 mating cycles
Wiresize 1.0 - 2.5 mm²
Wiresize 12 AWG
Material
Contact plating 2 µm Ag
Contacts Bronze (CuSn0.2)
Insert Polyamide (PA 6.6 30 % GR)
Locking element ZuAl4Cu1
Shell Polyamide (PA 6.6 30 % GR)
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Temperature range -30 °C to +80 °C
Accessories

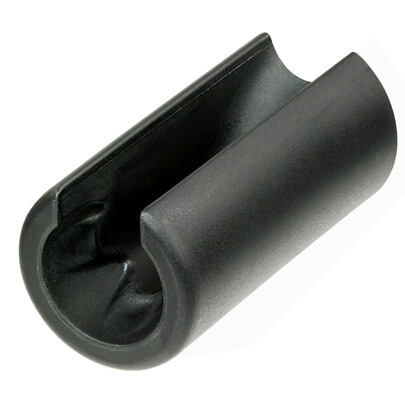

HTAC

Hand tool for tightening the bushing of the powerCON TRUE1.

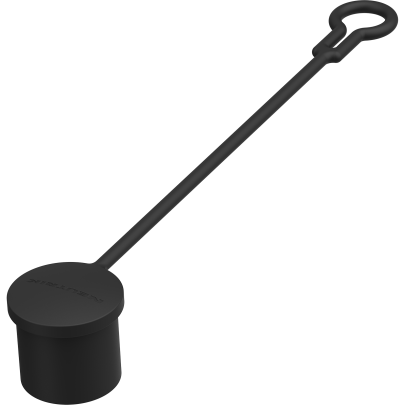

 Dichtkappe_SCNAC-FX_persp front liegend_RGB_WEB.png
SCNAC-FX

The rubber sealing cover protects the powerCON TRUE1 TOP NAC3FX-W-TOP from dust and water according to protection class IP65.
