NAC3FPX-ST-TOP
neutrik-uk / Products / powerCON® / powerCON® TRUE1 / powerCON® TRUE1 Chassis Connectors / NAC3FPX-ST-TOP

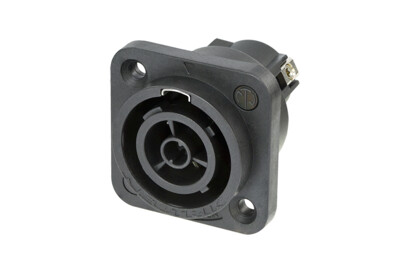

NAC3FPX-ST-TOP

Download Data Sheet

Appliance outlet connector, screw terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features & Benefits
  • Heavy duty sealed power connector for harsh and demanding environment
  • Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX)
  • Uses high impact UV-resistant materials
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL498 certified
Downloads
30009220_NAC3FPX-ST-TOP
stp - 7.29 MB
st-nac3fpx-st-top
pdf - 159.36 KB
st-nac3fpx-st-top
dxf - 1.29 MB
BDA 546 - powerCON TRUE1 TOP - NAC3FPX-ST-TOP
pdf - 1.64 MB
Neutrik TOP Products - NF23 V07 202111
pdf - 5.03 MB
Certificate_UL_E343813-20110501 (2024-05-08)
pdf - 436.33 KB
Links
UL Certificate (AXUT2.E343813) cUL Certificate (AXUT8.E343813)

Technical Information

Product
Title NAC3FPX-ST-TOP
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0.1 GΩ (after damp heat test)
Number of electrical contacts 2 + PE
Rated current per contact 16 A rms (USA: 20 A)
Rated voltage 250 V ac
Mechanical
Lifetime > 5000 mating cycles
Wiresize 2.5 mm²
Wiresize 14 AWG
Wiring screw terminals
Material
Contact plating 2 µm Ag
Locking element Stainless steel
Shell Polyamide (PA 6.6)
Contacts Spring Copper (CuSn0.2)
Environmental
Flammability UL 94 V-0
Protection class IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-FPX)
Temperature range -30°C to +80°C according to IEC 61984
-5°C to +40°C according to IEC 60320-1
Accessories
powerCON_SCNAC-03_persp front_RGB_WEB.png
SCNAC-03

Rubber sealing cap G-size for powerCON TRUE1 TOP chassis connectors NAC3FPX*

NSSC-2

Sealing self-closing cap FPX for powerCON receptacle
