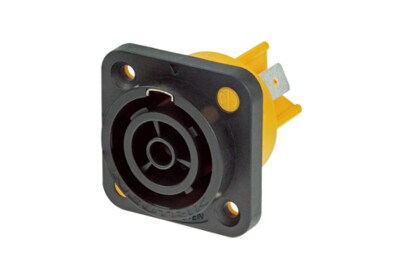

NAC3FPX

* Discontinued *
Successor product: NAC3FPX-TOP
Appliance outlet connector, 1/4'' flat tab terminals

The powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features & Benefits

Appliance outlet

True mains connector with breaking capacity (CBC)
Lockable 16 A single phase connector (USA: 20 A)
Easy and reliable twist lock system
Extremely robust and reliable
ENEC certified according to IEC 60320
UL recognized components
IP65 ingress protection in combination with SCNAC-MPX/PX/FPX (mated or with closed cap)

Downloads

Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25

pdf - 7 MB

ul-certificate-of-compliance---powercon-true1-nac3fpx

pdf - 666.71 KB

bda-340---powercon-true1-nac3fpx

pdf - 887.95 KB

cb-certificate-nac3fpx

pdf - 461.97 KB

enec-certificate-nac3fpx

pdf - 1.2 MB

ip-test-report

pdf - 1.61 MB

BDA 380 - powerCON TRUE 1 - NAC3MX-W

Links

UL Certificate (ECBT2.E343813) cUL Certificate (ECBT8.E343813)

Technical Information

Product
Title	NAC3FPX

Electrical
Contact resistance	≤ 3 mΩ
Dielectric strength	4 kVdc / 2.8 kVac
Insulation resistance	> 0.1 GΩ (after damp heat test)
Number of electrical contacts	2 + PE
Rated current per contact	16 A rms (USA: 20 A)
Rated voltage	250 V ac

Mechanical
Lifetime	> 5000 mating cycles
Wiresize	2.5 mm²
Wiresize	12 AWG

Material
Contact plating	2 µm Ag
Locking element	Stainless steel
Shell	Polyamide (PA 6.6)
Contacts	Spring Copper (CuSn0.2)

Environmental
Flammability	UL 94 V-0
Temperature range	- 30 °C - +80 °C

Accessories

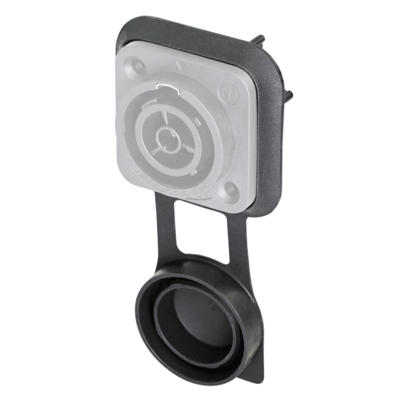

SCNAC-FPX

*** DISCONTINUED *** Sealing cover for powerCON TRUE1 female chassis connector NAC3FPX*
