NA3F5F

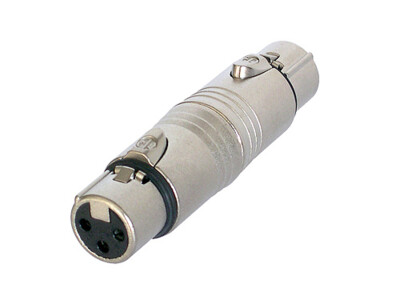

3 pole XLR female - 5 pole XLR female (gender conversion adapter)
Features & Benefits
Features & Benefits
- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the XX Series
- Rugged diecast shell for best reliability.
Downloads
Technical Information
| Product | |
|---|---|
| Title | NA3F5F |
| Connection Type | Adapter |
| Electrical | |
|---|---|
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 2 GΩ |
| Rated current per contact | 3 A |
| Mechanical | |
|---|---|
| Insertion force | < 20 N |
| Withdrawal force | < 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Locking device | Latch lock |
| Material | |
|---|---|
| Contact plating | 2 µm Ag |
| Contacts | Brass (CuZn39Pb3) (5 pole female) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
