MTP® Patch Cable

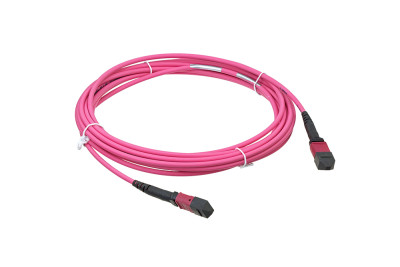

High performance MTP^® patch cable to connect the rear side of the opticalCON MTP^® chassis connectors. Elite^®male ferrules guarantee low insertion loss and optimized optical return loss values.

Optical Con Login

To login Optical Con Login

Features & Benefits

USCONEC MTP Elite^® Male connector
Multifiber design reduces installation cost and time
Small form factor
Unique fiber design for high cable performance
Individual lengths available
Single and multimode
Standard wiring method: A
Optional wiring method B and C available upon request

Downloads

Drawing MTP 12 patch cable

pdf - 58.24 KB

Drawing MTP 16 patch cable

pdf - 59.55 KB

Drawing MTP 24 patch cable

pdf - 56.92 KB

Drawing MTP 48 patch cable

pdf - 59.8 KB

reference-projects---opticalcon

pdf - 4.96 MB

NEUTRIK opticalCON Guide – NF05 V32 – 202506

pdf - 51.19 MB

Technical Information

Product
Title	MTP® patch cable

Environmental
Temperature range	-20 °C to +70 °C

Optical
Insertion loss	Please see individual drawings (Downloads)
Optical connector	MTP® Male SM [APC] to MTP® Male SM [APC] MTP® Male MM [PC] to MTP® Male MM [PC]
Optical wiring	Method A

Mobile cable
Outer diameter	MTP®12: 3,0mm (approx.) MTP®16: 3,5mm (approx.) MTP®24: 3,8mm (approx.) MTP®48: 4,8mm (approx.)
Jacket material	LSZH/OFNP/PVC
Core diameter	Multimode 50 µm Singlemode 9 µm
Cladding diameter	125 µm
Number of fibers	12, 16, 24, 48

Accessories

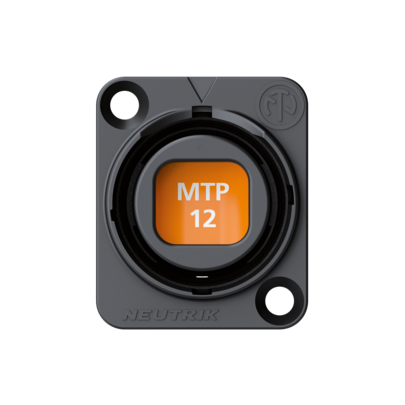

NO12FDW-A

The rear compatibility of opticalCON MTP® chassis fitting with standard MTP® (ELITE male) breakout cable allows easy adaptation to fiber standard connectors such as LC, SC, ST.

audio

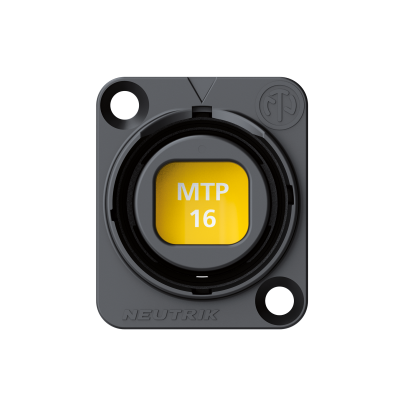

NO16FDW-A

MTP® 16 chassis fitting with standard MTP® 16 (ELITE male with 20 N springforce) breakout cable

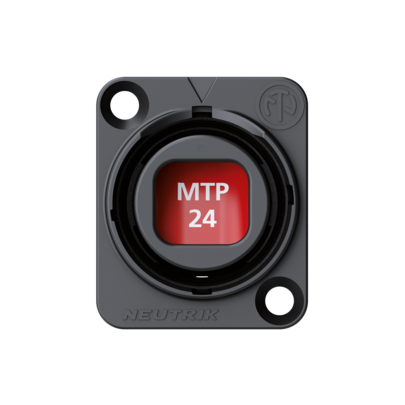

NO24FDW-A

opticalCON MTP^® 24 chassis fitting with standard MTP^® 24 (ELITE male with 20 N springforce) breakout cable

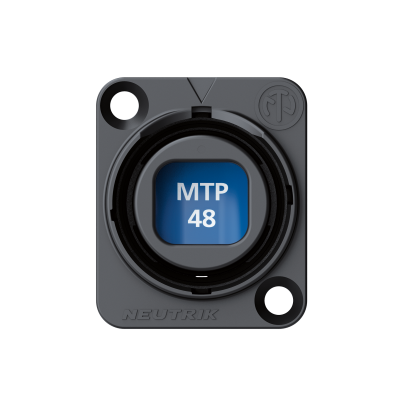

NO48FDW-A

MTP® 48 chassis fitting with standard MTP® 48 (ELITE male with 20 N springforce) breakout cable

CAS-FOCD-ADV

Fiber optic cleaning kit

audio

CAS-FOMD

Fiber Optic Measurement Devices

Ordering Information

Product Code	Description	From connector	To connector	Fibertype
NKOP12M-A-0-*	MTP®12 patch cable MM	MTP®12 MM[PC] Male	MTP®12 MM[PC] Male	Multimode
NKOP12SA-A-0-*	MTP®12 patch cable SM	MTP®12 SM[APC] Male	MTP®12 SM[APC] Male	Singlemode

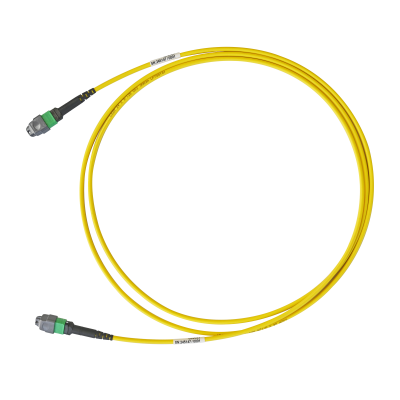

NKOP16SA-A-0-*	MTP®16 patch cable SM	MTP®16 SM[APC] Male	MTP®16 SM[APC] Male	Singlemode
NKOP24M-A-0-*	MTP®24 patch cable MM	MTP®24 MM[PC] Male	MTP®24 MM[PC] Male	Multimode
NKOP24SA-A-0-*	MTP®24 patch cable SM	MTP®24 SM[APC] Male	MTP®24 SM[APC] Male	Singlemode

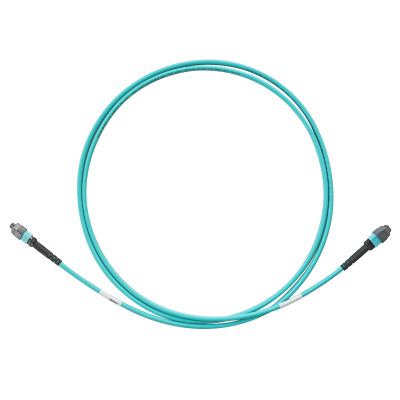

NKOP48M-A-*	MTP®48 patch cable MM	MTP®48 MM[PC] Male	MTP®48 MM[PC] Male	Multimode
