MTP® Breakout Cable

Download Data Sheet

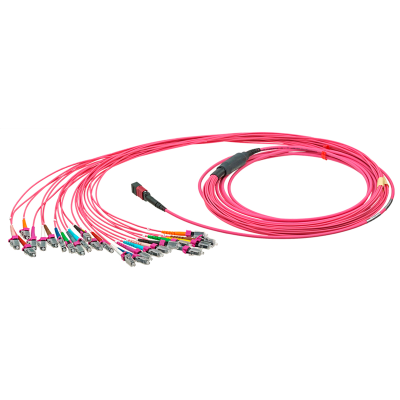

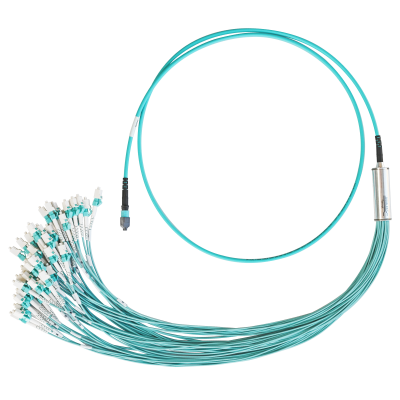

High performance MTP^® breakout cable for permanent and temporary installations. Standard premium grade A LCs (single-mode PC; multimode PC) guarantee low insertion loss values. Fan-outs for easy fiber breakout to any standardized LC-connections.

Features & Benefits

Low loss breakout cable
Grade A premium ferrules
Standard breakout connector: LC[PC]
More breakout connector types available upon request
High performance USCONEC Elite^® Male MTP ferrule
Interferometer measurement to inspect ferrule geometry

Downloads

Drawing MTP12 fanout cable

pdf - 69.85 KB

Drawing MTP16 fanout cable

pdf - 75.36 KB

Drawing MTP 24 fanout cable

pdf - 70.34 KB

Drawing MTP48 fanout cable

pdf - 75.11 KB

reference-projects---opticalcon

pdf - 4.96 MB

NEUTRIK opticalCON Guide – NF05 V30 – 202410

pdf - 43.46 MB

Technical Information

Product
Title	MTP® breakout cable

Environmental
Temperature range	-20 °C to +70 °C

Optical
Insertion loss	Please see individual datasheet (Downloads)
Optical connector	MTP® Male SM [APC] to LC [PC] MTP® Male MM [PC] to LC [PC]
Optical wiring	Method A

Mobile cable
Outer diameter	MTP®12: 3,0mm (approx.) MTP®16: 3,5mm (approx.) MTP®24: 3,8mm (approx.) MTP®48: 4,8mm (approx.)
Jacket material	LSZH/OFNP/PVC
Core diameter	Multimode 50 µm Singlemode 9 µm
Cladding diameter	125 µm
Number of fibers	12, 16, 24, 48

Accessories

NO12FDW-A

The rear compatibility of opticalCON MTP® chassis fitting with standard MTP® (ELITE male) breakout cable allows easy adaptation to fiber standard connectors such as LC, SC, ST.

audio

NO16FDW-A

MTP® 16 chassis fitting with standard MTP® 16 (ELITE male with 20 N springforce) breakout cable

NO24FDW-A

opticalCON MTP^® 24 chassis fitting with standard MTP^® 24 (ELITE male with 20 N springforce) breakout cable

NO48FDW-A

MTP® 48 chassis fitting with standard MTP® 48 (ELITE male with 20 N springforce) breakout cable

CAS-FOCD-ADV

Fiber optic cleaning kit

audio

CAS-FOMD

Fiber Optic Measurement Devices

Ordering Information

Product Code	Description	From connector	To connector	Fibertype	Split-Length
NKOB12M-A-0-*	MTP®12 Breakout cable MM	MTP®12 MM[PC] Male	12x LC[PC]	Multimode	61 cm
NKOB12SA-A-0-*	MTP®12 Breakout cable SM	MTP®12 SM[APC] Male	12x LC[PC]	Singlemode	61 cm
NKOB16SA-A-0-*	MTP®16 Breakout cable SM	MTP®16 SM[APC] Male	12x LC[PC]	Singlemode	100 cm
NKOB24M-A-0-*	MTP®24 Breakout cable MM	MTP®24 MM[PC] Male	24x LC[PC]	Multimode	100 cm
NKOB24SA-A-0-*	MTP®24 Breakout cable SM	MTP®24 SM[APC] Male	24x LC[PC]	Singlemode	100 cm
NKOB48M-A-0-*	MTP®48 Breakout cable MM	MTP®48 MM[PC] Male	48x LC[PC]	Multimode	100 cm
