LF48-1S
neutrik-uk / Products / LF48-1S

LF48-1S

Download Data Sheet

*DISCONTINUED*

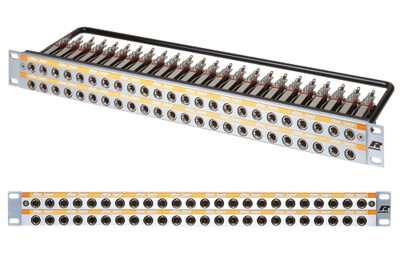

48 way Longframe B-Gauge Patch Panel, silver front panel, extra rugged jack sockets which allow customized normalling

Features & Benefits
  • 48 way Longframe B-Gauge patchbay
  • Accepts both European BPO 316 and US MIL-P-642/2 style phono plugs
  • 2 rows of 24 LF501 jack connectors
  • Jack designed from rigid nickel-plated die-cast aluminium with nickel-silver spring contacts
  • Reliable support for connecting looms by steel lacing bar
Downloads
07 Section Accessories and Patch Panels PG DE 202202-V22
pdf - 7.27 MB

Technical Information

Product
Title LF48-1S
Connection Type Patch Panel
Electrical
Signal Type AES/EBU Signals (digital)
Contact resistance < 20 mΩ
Contact resistance < 15 mΩ
Dielectric strength > 0.5 kVdc
Frequencyrange DC to > 50 MHz
Insulation resistance > 1 GΩ @ 500 V dc
Channel separation > 100 dB @ 10 kHz, 600 terminated
> 40 dB @ 6 MHz, 110 terminated
Handles Phantom Power Yes
Mechanical
Insertion force < 25 N
Withdrawal force > 10 N
Lifetime > 20000 mating cycles
Wiresize
Locking device Retention spring
Material
Contacts Pallatium plated (Switch contacts)
Shell diecast Al (Jacks)
Shell plating Silver front panel
Front panel anodised Al
Lacing bar powder coated steel
Environmental
Temperature range -30 °C to +80 °C
Accessories
audio
LFJ-501

*** DISCONTINUED *** Longframe B-Gauge jack, standard solder lugs
