DIE-BNC-PG

Download Data Sheet

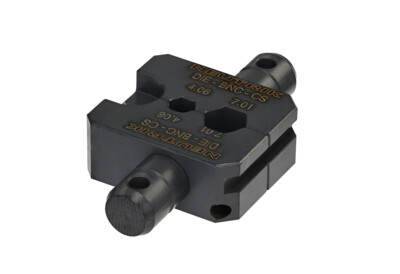

Crimp tool die for HX-BNC

Pin crimping: 1.6 mm
Shield and jacket: HEX crimp 6.47 mm (A), 5.00 mm (B)

Downloads
die-bnc-pg-1
pdf - 99.14 KB
die-bnc-pg-2
dxf - 30.3 KB

Technical Information

Product
Title DIE-BNC-PG
Mechanical
Crimp size 5.00, 6.47 Hex crimp (shield) acc. MIL22520/5-43(B), IEC 60803 (die designation E)
Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Wiresize
Accessories
video
HX-BNC

Crimp tool, frame ATTENTION: Suitable dies are DIE-BNC-*
