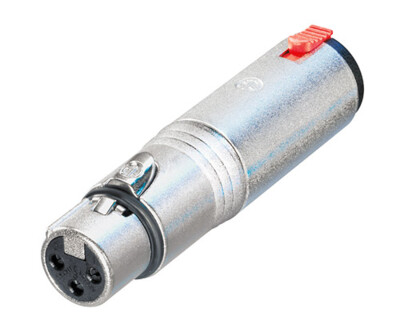

NA3FJ
3 pole XLR female - Stereo 1/4" locking jack (tip, ring, sleeve contact)
Features & Benefits
- Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
- Professional look and compact space saving design, based on the XX Series
- Rugged diecast shell for best reliability
Downloads
Technical Information
| Product | |
|---|---|
| Title | NA3FJ |
| Connection Type | Adapter |
| Electrical | |
|---|---|
| Contact resistance | ≤ 3 mΩ (XLR) |
| Contact resistance | ≤ 6 mΩ |
| Dielectric strength | 1.5 kV dc / > 1 kVdc (XLR/Jack) |
| Insulation resistance | > 2 GΩ |
| Mechanical | |
|---|---|
| Wiresize | |
| Locking device | Latch lock |
| Material | |
|---|---|
| Contact plating | 2 µm Ag |
| Contacts | Bronze (CuBe2) (jack) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | gal Cu/Ni |
| Environmental | |
|---|---|
| Temperature range | -20 °C to +65 °C |
