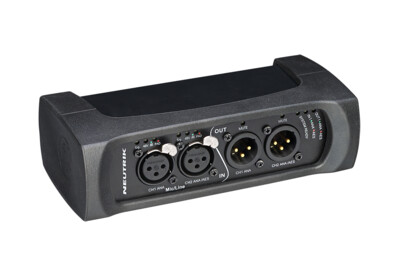

NA2-IO-DPRO-Front-view-00
neutrik-uk / Products / Digital Audio Devices / Mic, Line, AES/EBU to Dante® Interfaces / NA2-IO-DPRO

NA2-IO-DPRO

Download Data Sheet

*** DISCONTINUED ***
Direct replacement / successor: NA-2I2O-DLINE, NA-2I-DLINE and NA-2O-DLINE (10.2023)

The NA2-IO-DPRO is a 2IN, 2OUT breakout box designed to connect legacy audio equipment with the Dante® network. It features high-quality microphone preamps and 2 Dante® ports for either redundant setup or daisy chaining. Audio parameters are adjusted either by Neutrik's DPRO controller or a number of common control software.

All connectors are lockable and, together with the removable rubber protection, offer a reliable solution for tough stage conditions. With optional mounting brackets or a rack panel, the box can be mounted below tables, in floor boxes, racks or on a truss.

Features & Benefits
  • Lockable audio and network connections
  • Connect up to two analog line or mic signals to a Dante® network
  • Connect AES/EBU signals to a Dante® network and provide an AES/EBU signal from the Dante® network
  • Feed non Dante® ready amplifiers, speakers or mixing desks with signals from the Dante® network
  • Primary and Secondary Dante® ports
  • Setting of all audio parameters via the DPRO controller software. Yamaha CL/QL mixer, QSYS plug in and Crestron module
  • Different mounting options (rack, truss, floorbox, table mounting)
  • Requires a Power over Ethernet switch or a PoE injector (802.3 af/at/bt)

For Dante® related questions, refer to the  Audinate® website: www.audinate.com. The  Audinate® website features a wealth of manuals, teaching material, FAQs and videos.

Please see the Technical Specifications in the NA2-IO-DPRO brochure.

Audinate® is a registered trademark of  Audinate® Pty Ltd. Dante® is a trademark of Audinate® Pty Ltd.

Downloads
st-na2-io-dpro
pdf - 325.99 KB
st-na2-io-dpro
dxf - 3.61 MB
NA2-IO-DPRO_1
octet-stream - 4.5 MB
NEUTRIK_AUDIO_NETWORK_SOLUTION-DANTE_NF26V6_EN-202105
pdf - 7.95 MB
Production Partner NA2-IO-DPRO EN
pdf - 1.18 MB
BDA 580 E V3 - Yamaha CL-QL Setup for NA2-IO-PDRO
pdf - 857.06 KB
BDA 573 V6 DANTE-Adapter-NA2-IO-DPRO
pdf - 4.95 MB
BDA_571_E_V4_ HOW TO UPDATE YOUR NEUTRIK DANTE DEVICE VIA DANTE CONTROLLER
pdf - 1.04 MB
BDA 617 V6 - NA2-IO-DPRO - Firmware & DPRO Controller Software
pdf - 984.66 KB
BDA 583 E V2 - NA2-IO-DPRO_Q-SYS_Designer_Software
pdf - 1.26 MB
CB Certificate DANTE PRO NA2-IO-DPRO
pdf - 276.19 KB
EU DC
pdf - 409.88 KB
DPRO_Controller_MAC_V2
zip - 49.54 MB
DPRO_Controller_WIN_V2
zip - 32.46 MB
NTP13 V1 - NA2-IO-DPRO
pdf - 654.24 KB
Accessories
poe
NPS-30W

World's first PoE injector made for harsh stage conditions, with lockable power and network connectors.

audio

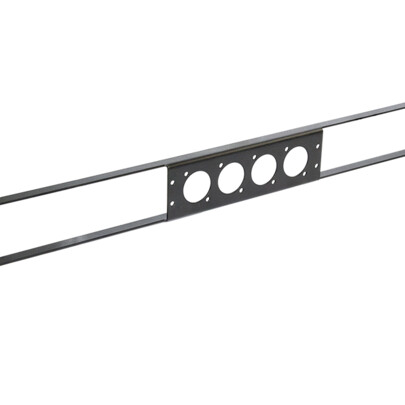

NRP1RU-2A

Rack panel

audio

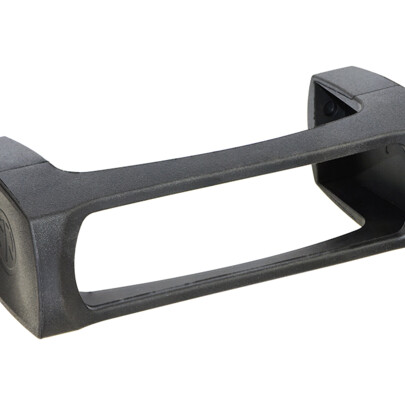

NA-RC

Rubber cover

audio

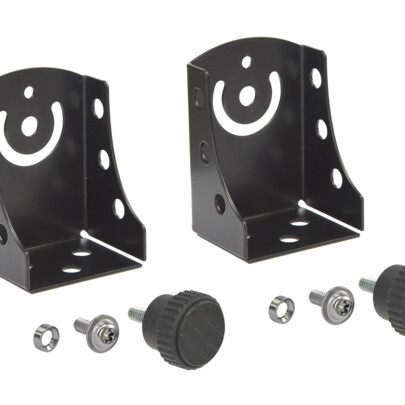

NA-MB-KIT

Mounting bracket kit

audio

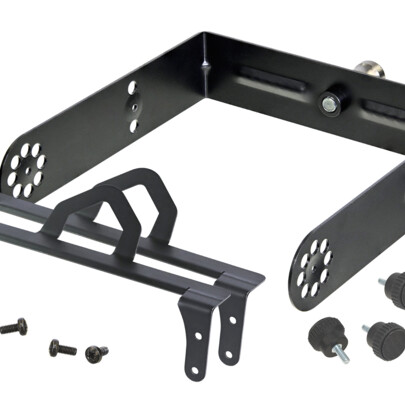

NA-TM-KIT

Truss yoke kit

Distributor stock search

Enter part number and search Neutrik UK distributor's stock.

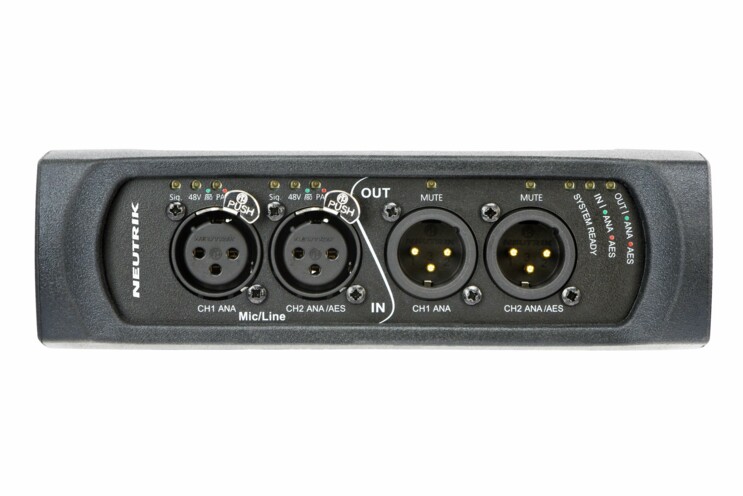

Overview Front

NA2-IO-DPRO-Front-view-0

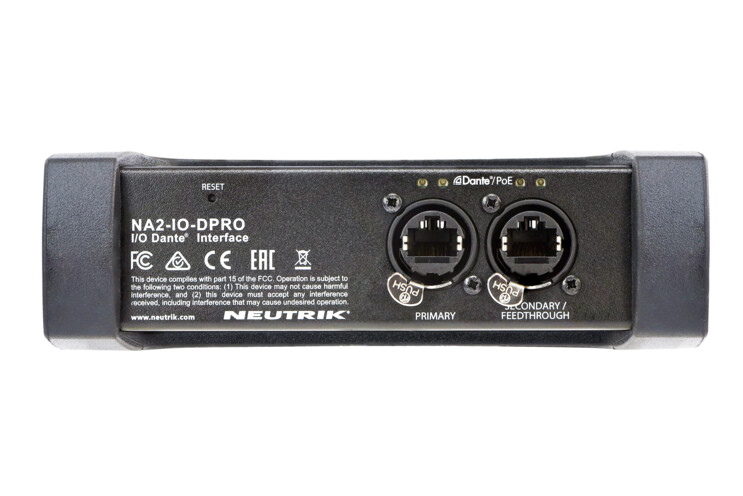

Overview Rear

NA2-IO-DPRO-Rear-view-0

NA2-IO-DPRO - Yamaha CL/QL Remote

NA2-IO-DPRO - Neutrik Audio Network Solutions
