VORSCHAUBILD - FIBERFOX EBC 25  2CH Chassis offen FIBERFOX_NO2M4JW-FG_persp back_RGB_WEB
VORSCHAUBILD - FIBERFOX EBC 25  2CH Chassis offen

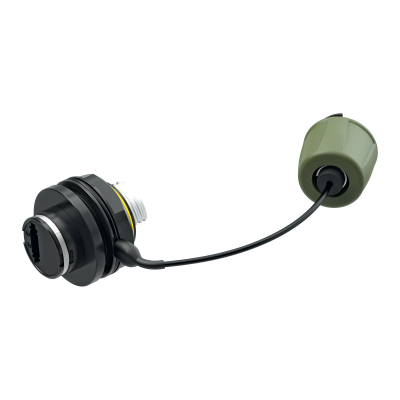

FIBERFOX_NO2M4JW-FG_persp back_RGB_WEB
1/2
neutrik-uk / Products / FIBERFOX / FIBERFOX EBC25 (jam nut) / FIBERFOX EBC25 Chassis / FIBERFOX EBC25 2CH chassis

FIBERFOX EBC25 2CH chassis

Download Data Sheet

The FIBERFOX EBC25 2CH chassis is an expanded beam multimode hermaphroditic chassis connector suited for a vast array of applications. With its jam-nut design is suitable for all kinds of industrial, defense & government or even railway applications.

The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical. The chassis connector is designed according to the MIL-DTL-83526 standard and fits to all other connectors with this standard.

Benefiting from the expanded beam technology and the precision optical alignment the system creates high immunity against dust, mud, liquids and other contaminations. The FIBERFOX EBC25 2CH chassis connector converts a standardized LC patch cable into an expanded beam solution. It acts as a “feed-through” and has a jam-nut design.

Features & Benefits
  • Suitable for installation and wireways without special tools
  • Integration of other fiber optic systems into FIBERFOX
  • No splicer, no expertise required for Installation
  • Very compact jam-nut design
  • Easy patching with common patch cables (LC to LC, LC to SC, LC to ST)

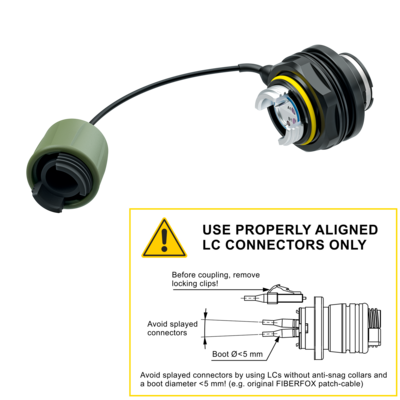

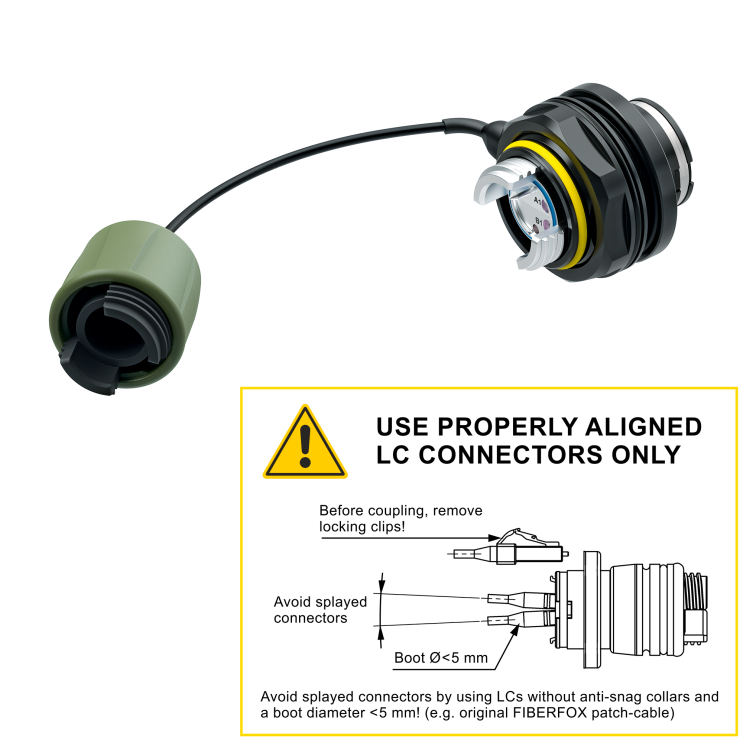

    WARNING: Boot diameter must be smaller than 5mm. Suitable Neutrik patch cables are available.
  • IP68 Waterproof even without a protective cap, optimized for outdoor use
  • Extremely low maintenance
Downloads
Drawing NO2M4JW-FG
pdf - 1.08 MB
Drawing NO2M4JW-FG
vnd.dwg - 797.55 KB
3D Model NO2M4JW-FG
STEP - 5.1 MB
Assembly Instruction FIBERFOX Chassis Connector EBC25
pdf - 2.04 MB
NEUTRIK - FIBERFOX EXPANDED BEAM CONNECTOR - NF32 V7 202410
pdf - 12.82 MB

Technical Information

Product
Title FIBERFOX EBC25 2CH chassis
Gender Hermaphroditic
Mechanical
Mounting Direction Front & rear mounting
Chassis Shape Jam nut
Lifetime (typ.) 10000 mating cycles
Locking device Screwed
Bump Resistance 4000 bumps @ 40g acceleration
Vibrational Sinusoidal 10-500Hz, 0.75 amplitude @ 10g acceleration
Material
Insert Steel
Shell Aluminium
Shell plating Hard anodize
Strain relief Brass
Environmental
Flammability UL 94 V-0
Protection Class IP68 mated (15m for 24h acc. MIL-DTL-83526D Section 3.11.28)
and unmated (1m for 24h)
Compatibility MIL-DTL-83526
Temperature Range -46°C to +71°C (-51°F to 160°F)
Optical
Insertion loss Typ. 1.5dB per connection / Max. 2.5dB per connection
Optical connector EBC25
Optical wiring ISO / IEC 11801
Accessories
audio
LC Patch Cable
data
FIBERFOX_NKO2S_FG_persp front_RGB_WEB.png
FIBERFOX EBC25 2CH Cable

FIBERFOX EBC25 2CH cable connector – fully compliant with MIL-DTL-83526 standard

FIBERFOX 27610011 o adapters.png
FIBERFOX Adaptor BOX
VORSCHAUBILD - FIBERFOX EBC 25  2CH Chassis offen
FIBERFOX EBC25 2CH ordering options
Order codeProduct codeDescription
1036432NO2M4JW-FGFIBERFOX EBC25 Chassis 2CH MM OM4





Market & Application
  • Defense & Government
  • Railway
  • Oil & Gas Station
  • Video
  • PA Market
  • Lighting & Network
