NC5FDM3-H
*** DISCONTINUED ***
Direct replacement / successor: NC5FDM3-H-1

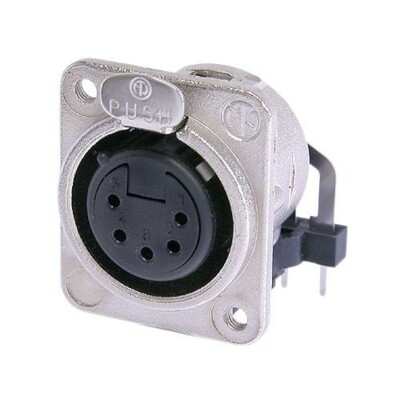

5 pole female receptacle, horizontal PCB mount, Nickel housing, silver contacts, M3 mounting holes
Universal D-size metal body XLR panel mount series. UL recognized component.
Features & Benefits
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout
- PCB mount termination
Downloads
Technical Information
| Product | |
|---|---|
| Title | NC5FDM3-H |
| Connection Type | XLR |
| Gender | female |
| Electrical | |
|---|---|
| Capacitance between contacts | ≤ 7 pF |
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 7,5 A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Wiring | Horizontal PCB mount |
| Locking device | Latch lock |
| Mounting direction | Rear mounting |
| Chassis shape | D |
| Mounting | Mounting holes with M3 threads |
| Material | |
|---|---|
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA66) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
|---|---|
| Approvals | UL |
| Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
Accessories
CAS-DUMMY
The dummyPLUG case includes a mixed assortment of dummyPLUGs
audio
DBA-BL
Dummy-plate to cover D-shape cutouts
audio
DSS-*
Colored lettering plate for D-shape-connectors
audio
NDF
dummyPLUG for Neutrik female XLR receptacles
audio
SCDF
Rubber sealing cover for XLR D-Series female
audio
SCDX
Hinged cover
audio
SCF
Dust protection cover for female chassis connectors
SCCD-W
Spring-loaded sealing cover
