NC3MXX-B-CRYSTAL
*** DISCONTINUED ***

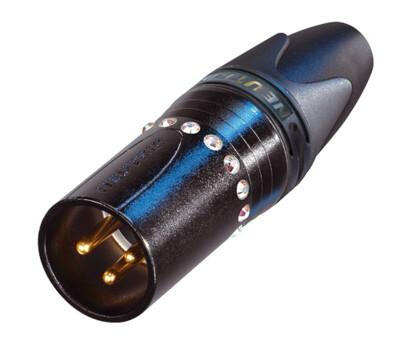

3 pole male XLR cable connector, black metal housing with CRYSTALLIZEDTM - Swarovski Elements, gold contacts
Features & Benefits
- 3 pole XLR XX series made with CRYSTALLIZEDTM - Swarovski Elements
- Fancy, noble, valuable, attractive package - an eye catcher
Downloads
Technical Information
| Product | |
|---|---|
| Title | NC3MXX-B-CRYSTAL |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
|---|---|
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Cable O.D. | 3.5 - 8.0 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 2.5 mm² |
| Wiresize | max. 14 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
|---|---|
| Boot | Polyurethan |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA66) |
| Locking element | Zinc diecast (ZnAl4Cu1) |
| Shell | made with CRYSTALLIZEDTM - Swarovski Elements |
| Shell plating | Black chromium |
| Strain relief | Polyacetal (POM) |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
Accessories
audio
BXX-*
Colored bushings
audio
BXX-CR
Black bushing with clear coding ring
audio
BXX-14
Large bushing with chuck type strain relief (8 mm - 10 mm cable O.D.).
audio
HTXP
Hand tool for tightening the bushing of the XLR XX series, Plug PX series and etherCON CAT6 series.
audio
XXR-*
Colored coding rings. Color ring can be changed without unsoldering insert.
audio
XXCR
Transparent coding ring which allows an individual customized labeling, branding, coding etc.
