NC3FM-C-B

Download Data Sheet

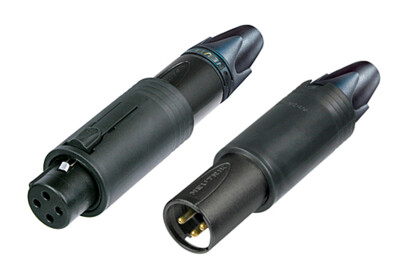

World's first 3 pole unisex XLR cable connector, black

Features & Benefits

World's first unisex XLR
3 pole male and female cable connector in one housing
Easy selectable gender - converted by sliding housing back and forth
Substitute adapters, ideal as an emergency kit
With all benefits of the XLR XX series

Downloads

01 NEUTRIK Section XLR Connectors PG EN 202202-V23_opt

Technical Information

Product
Title	NC3FM-C-B
Connection Type	XLR
Gender	female

Electrical
Capacitance between contacts	≤ 4 pF
Contact resistance	≤ 3 mΩ
Dielectric strength	1.5 kVdc
Insulation resistance	> 2 GΩ (initial)
Rated current per contact	16 A
Rated voltage	<50 V

Mechanical
Cable O.D.	3.5 - 8.0 mm
Insertion force	≤ 20 N
Withdrawal force	≤ 20 N
Lifetime	> 1000 mating cycles
Wiresize	max. 2.5 mm²
Wiresize	max. 14 AWG
Wiring	Solder contacts
Locking device	Latch lock

Material
Boot	Polyurethan
Contact plating	0.2 µm Au
Contacts	Brass (CuZn39Pb3) (male)
Insert	Polyamdie (PA 6.6 30 % GR)
Locking element	Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell	Black chromium
Shell plating	Nickel
Strain relief	Polyacetal (POM)

Environmental
Flammability	UL 94 HB
Standard compliance	IEC 61076-2-103
Protection class	IP 40
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C

Accessories

Colored bushings

Black bushing with clear coding ring

Large bushing with chuck type strain relief (8 mm - 10 mm cable O.D.).

Hand tool for tightening the bushing of the XLR XX series, Plug PX series and etherCON CAT6 series.

Colored coding rings. Color ring can be changed without unsoldering insert.

Transparent coding ring which allows an individual customized labeling, branding, coding etc.
