opticalCON QUAD X-TREME

Assembled, 4-channel X-TREME cable offering a cut-proof and rodent resistant double jacket glass yarn armored cable construction. Excellent cable retention due to aramid yarn, black PUR outer jacket.

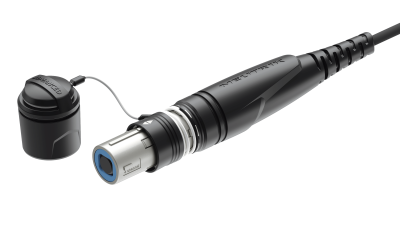

The opticalCON QUAD cable connector accommodates four PC optical channels based on conventional and proven LC connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.

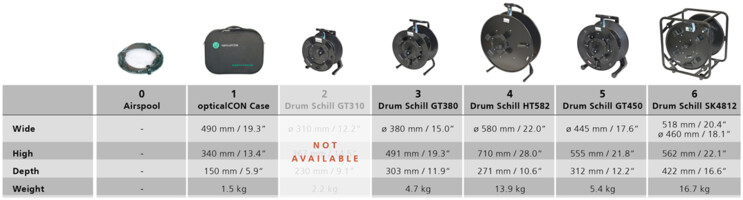

The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.

Features & Benefits

opticalCON X-TREME cable for demanding applications like touring / rental or outdoor broadcast
opticalCON multi mode fiber cables offer laser and bend optimized OM3 fibers
Offers a cut-proof and rodent-resistant double-jacket, glass-yarn armored cable construction
Rugged 4-channel fiber optic connection system
For Point-to-Point multichannel routing
Innovative spherical shutter guarantees low maintenance
Dust and water resistant according to IP65 in mated condition

Downloads

3D Ansicht NO4_X-A XTREME

stp - 4.02 MB

Strichzeichnung NKO4_X-A

pdf - 316.56 KB

Strichzeichnung NKO4_X-A

dxf - 6.37 MB

opticalcon-audio--video--lighting-application

pdf - 524.47 KB

opticalcon-broadcast-application-ob-truck

pdf - 422.34 KB

NDS08 - opticalCON QUAD ADVANCED XTREME

pdf - 231.05 KB

BDA 522 V2 - opticalCON QUAD Handling Instruction

pdf - 3.55 MB

opticalcon-quad-technical-paper-v1

pdf - 1.52 MB

opticalcon-availability

pdf - 586.23 KB

reference-projects---opticalcon

pdf - 4.96 MB

NEUTRIK opticalCON Guide – NF05 V30 – 202410

pdf - 43.46 MB

Technical Information

Product
Title	opticalCON QUAD X-TREME
Gender	male

Mechanical
Cable retention	500 N
Insertion force	< 45 N
Withdrawal force	< 45 N
Lifetime (typ.)	5000 mating cycles
Wiresize
Locking device	Push-Pull

Material
Boot	Rubber (EPDM)
Bushing	Zinc diecast (ZnAl4Cu1)
Insert	Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Black chromium
Strain relief	Polyacetal (POM) (brass)

Environmental
Temperature range	-40 °C to +75 °C
Protection class	in mated condition IP65

Optical
Fiber type	Multimode PC Singlemode PC
Insertion loss	< 0.45 dB / connection
Optical wiring	ISO / IEC 11801

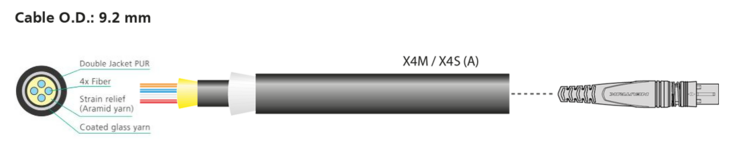

Mobile cable
Colour	black, matte
Core diameter	single mode 9 µm, multi mode 50 µm
Cladding diameter	125 µm
Comment	PUR
minimal bending radius	9.2 cm
Number of fibers	4
Cable retention	Aramid yarn
Weigth	82 kg/km
Overal diameter	9.2 mm
Outer shield	coated glass yarn
