opticalCON MTP® 12 X-TREME Cable
Assembled, 12-channel X-TREME cable offering a cut-proof and rodent resistant double jacket glass yarn armored cable construction. Excellent cable retention due to aramid yarn, black PUR outer jacket.

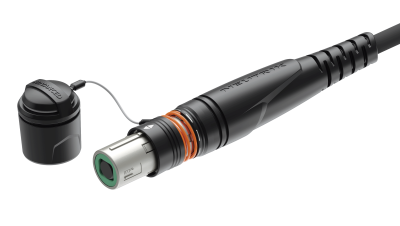

The opticalCON MTP® cable connector accommodates 12 optical fibers (multimode PC or single mode APC) based on conventional and proven MTP® connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.
The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.
- opticalCON X-TREME cable for demanding applications like touring / rental or outdoor broadcast
- opticalCON multimode fiber cables offer laser and bend optimized OM3 fibers
- Offers a cut-proof and rodent-resistant double-jacket, glass-yarn armored cable construction
- Rugged 12-channel fiber optic connection system
- For Point-to-Point multichannel routing
- Innovative spherical shutter guarantees low maintenance
- Dust and water resistant according to IP65 in mated condition
Technical Information
| Product | |
|---|---|
| Title | opticalCON MTP® X-TREME |
| Mechanical | |
|---|---|
| Cable retention | 500 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 2500 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
| Material | |
|---|---|
| Boot | Rubber (EPDM) |
| Bushing | Zinc diecast (ZnAl4Cu1) |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Brass (CuZn39Pb3) + PU, Ni (brass) |
| Environmental | |
|---|---|
| Temperature range | -40°C to +75 °C |
| Protection class | in mated condition IP65 |
| Optical | |
|---|---|
| Insertion loss | < 0.9 dB /connection |
| Optical connector | MTP® ELITE female |
| Optical wiring | Method A |
| Mobile cable | |
|---|---|
| Colour | black, matte |
| Core diameter | Singlemode 9 µm, Multimode 50 µm OM3 |
| Cladding diameter | 125 µm |
| Comment | PUR |
| minimal bending radius | 10.8 cm |
| Number of fibers | 12 |
| Cable retention | Aramid yarn |
| Weigth | 111 kg/km |
| Overal diameter | 10.8 mm |
The dummyPLUG case includes a mixed assortment of dummyPLUGs

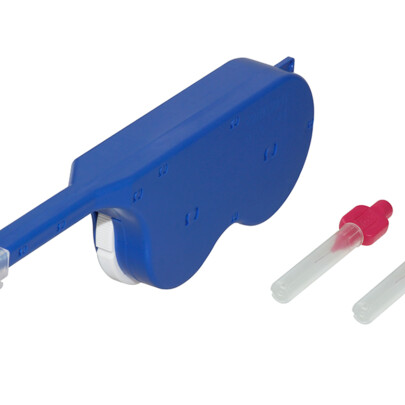

Fiber optic cleaning kit

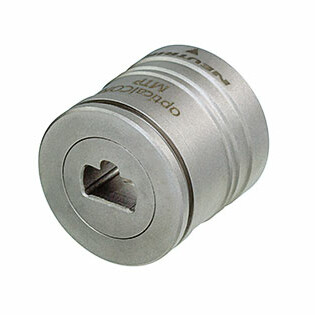

Fiber Optic Measurement Devices
Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-A)
Soft plastic cover for the rear ends of several D-size chassis connectors.
Hinged cover
Gummi beschichtete Schutzkappe für opticalCON Kabelstecker inklusive Front-Gehäuse.
The pulling sock simplifies the installation at a pulling force
DRY Cleaner MTP® , Reinigungsbürste für Führungsöffnungen
Distributor stock search
Enter part number and search Neutrik UK distributor's stock.

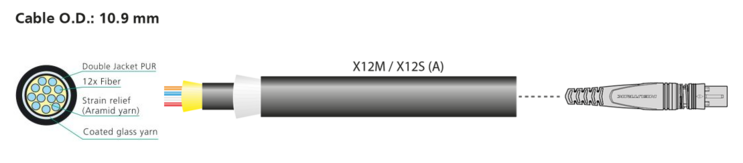

Cable cross section

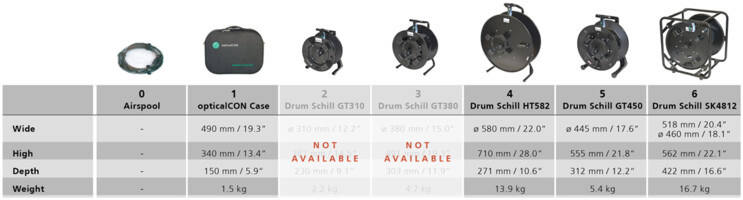

Packaging options and max. cable length
