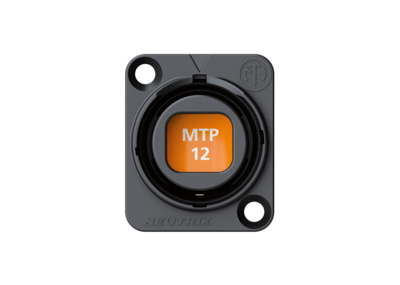

NO12FDW-A

The rear compatibility of opticalCON MTP® chassis fitting with standard MTP® (ELITE male) breakout cable allows easy adaptation to fiber standard connectors such as LC, SC, ST. The approved dust shutter ensures high mating cycles and minimal maintenance.

Features & Benefits

Ruggedized and dirt-protected 12-channel fiber optic connection system
For point-to-point multichannel routing
Laser protective metal shutter seals dust proof with two-component rubber gasket
IP65 ingress protection in mated condition with SCDP-*
Accommodates standard MTP^® ELITE male connectors on the rear for simple installation
Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard
Multi-mode - black
Single-mode APC - green

Downloads

3D Ansicht NO12FDW-A

stp - 1.91 MB

Strichzeichnung NO12FDW-A

pdf - 259.8 KB

Strichzeichnung NO12FDW-A

dxf - 14.23 MB

reference-projects---opticalcon

pdf - 4.96 MB

bda-350---opticalcon-mtp-handling-instruction-v2

pdf - 3.48 MB

technical-paper---opticalcon-mtp

pdf - 1.57 MB

16-103_neutrik_white-paper-opticalcon-mtp

pdf - 4.31 MB

NEUTRIK opticalCON Guide – NF05 V30 – 202410

pdf - 43.46 MB

Technical Information

Product
Title	NO12FDW-A
Gender	female

Mechanical
Insertion force	< 45 N
Withdrawal force	< 45 N
Lifetime (typ.)	2500 mating cycles
Locking force	1000 N
Wiresize
Locking device	Push-Pull
Mounting direction	Front mounting
Chassis shape	D

Environmental
Temperature range	-40 °C to +75 °C
Protection class	IP65 in mated condition in combination with SCDP-*

Optical
Insertion loss	< 0.9 dB / connection

Accessories

CAS-FOCD-ADV

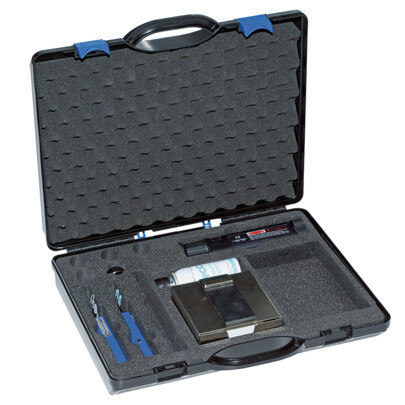

Fiber optic cleaning kit

Breakout-Adapter-Kit

The dummyPLUG NDO for Neutrik opticalCON receptacles enables you to simplify cabling.

audio

NZPF1RU

1RU opticalCON panel frame

audio

NZPF3RU

3RU opticalCON panel frame

NZP1RU-8

Angled rack panel for D-shape connectors

audio

NZPFD

Panel frame plate opticalCON for opticalCON DUO or QUAD chassis connector

audio

NZPFD-2

Panel frame plate opticalCON for 2 opticalCON DUO or QUAD chassis connectors

audio

NZPFD-4SC

*** DISCONTINUED *** Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and two SC duplex chassis connectors

NZPFD-4SC-S

Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and four SC simplex or four Single E2000 feedthroughs

audio

NZPFD-4ST

*** DISCONTINUED *** Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and four ST chassis connectors

audio

opticalCON QUAD loop Connector

Allows cost effective and low space loops in fiber optic networks

audio

SCDR

Soft plastic cover for the rear ends of several D-size chassis connectors.

audio

SCDX

Hinged cover

SCDP-FX-*

Sealing gasket for D-shape chassis connectors, 6 colors

SCNO-FDW-A

Rugged, all metal sealing cover for opticalCON chassis connectors

SCD-NC

Rugged rubber sealing cover for opticalCON chassis connectors

SCCD-W

Spring-loaded sealing cover

MTP® Patch Cable

High performance MTP^® patch cable to connect the rear side of the opticalCON MTP^® chassis connectors. Elite^®male ferrules guarantee low insertion loss and optimized optical return loss values.

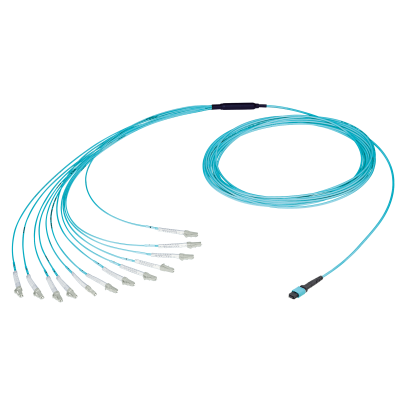

MTP® Breakout Cable

High performance MTP^® breakout cable for permanent and temporary installations. Standard premium grade A LCs (single-mode PC; multimode PC) guarantee low insertion loss values. Fan-outs for easy fiber breakout to any standardized LC-connections.

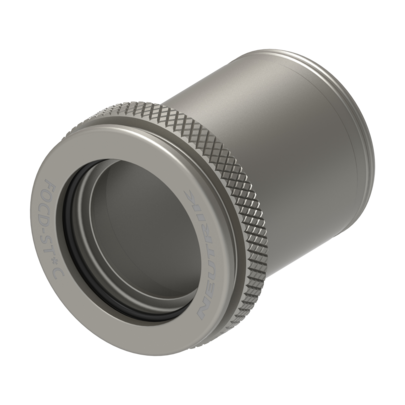

FOCD-STC
