NBB75DSG

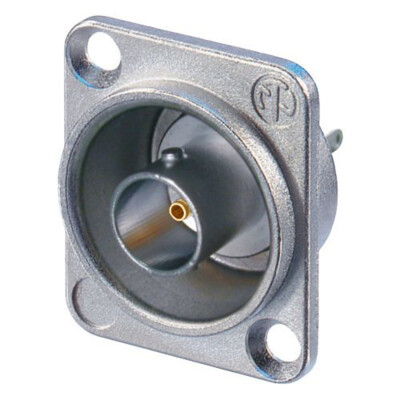

Grounded BNC chassis connector, solder version in nickel D-shape housing

Neutrik's BNC chassis connectors offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).

Features & Benefits

Gold plated center contact
True 75 Ω design meets the stringent HD requirements
Grounded panel mount
Standard D-shape housing - provides flush mounting and protection from demage
Color coding possible

Downloads

05 Section BNC Connectors PG 202311 EN -V25

pdf - 3.94 MB

Technical Information

Product
Title	NBB75DSG
Connection Type	BNC 75 Ω
Gender	female

Electrical
Signal Type	HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
Contact resistance	≤ 3 mΩ (inner)
Contact resistance	≤ 2 mΩ (outer)
Dielectric strength	1,5 kVdc
Impedance	75 Ω
Insulation resistance	> 5 GΩ
Rated voltage	<50 V
VSWR	≤1.03/>37 dB up to 1 GHz ≤1.05/>32 dB up to 2 GHz ≤1.08/>28 dB up to 3 Ghz

Mechanical
Insertion force	< 25 N
Lifetime	> 1000 mating cycles
Wiresize
Locking device	Bayonett
Mounting direction	Front mounting
Chassis shape	D

Material
Contacts	Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
Insert	PTFE
Shell	Polyacetal (POM) (Insulation Sheell)
Shell plating	Optalloy®
D-Shape housing	Zinc diecast (ZnAl4Cu1) gal Ni plating
